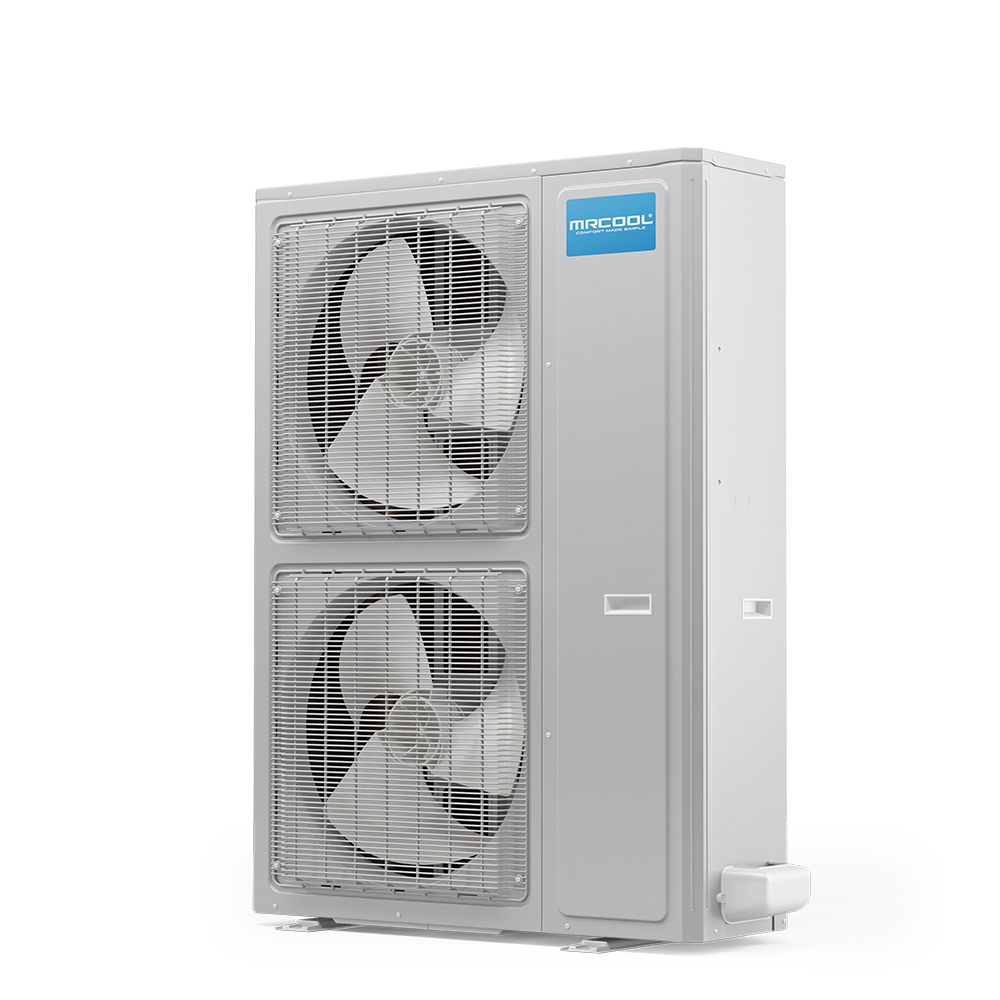

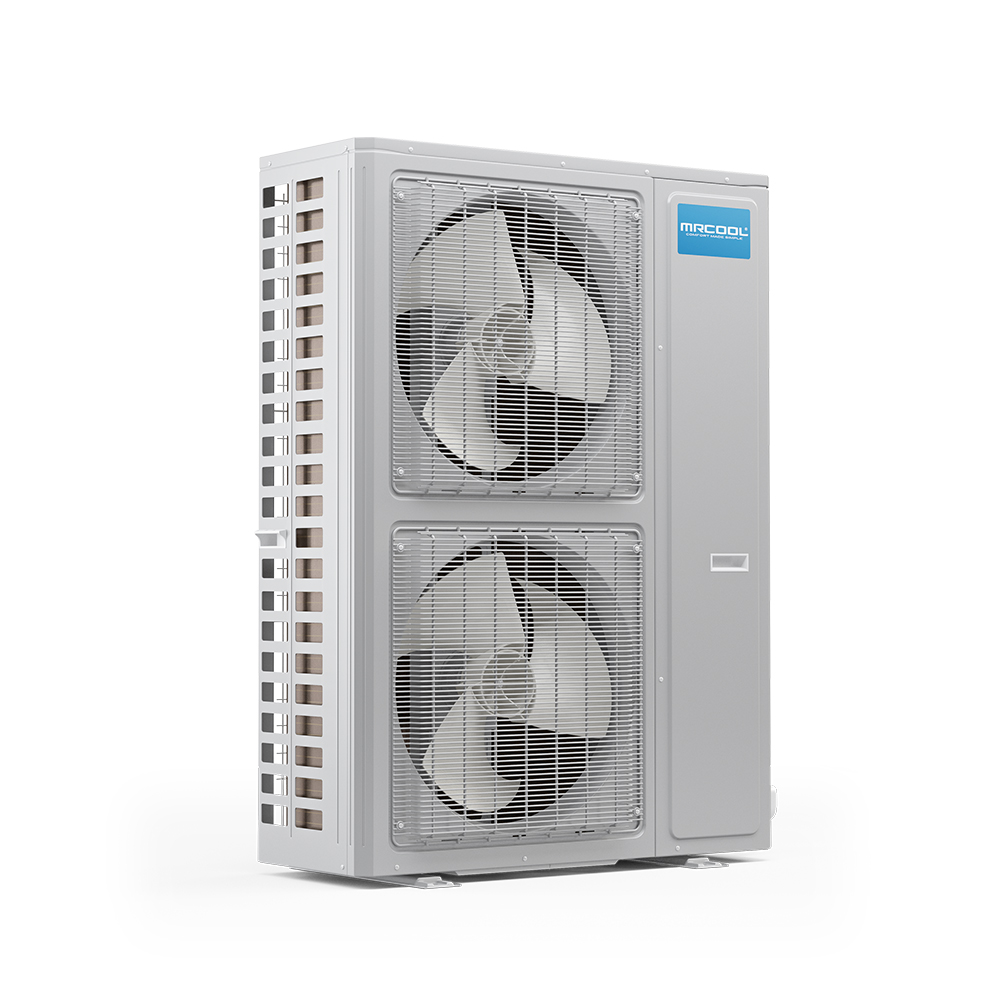

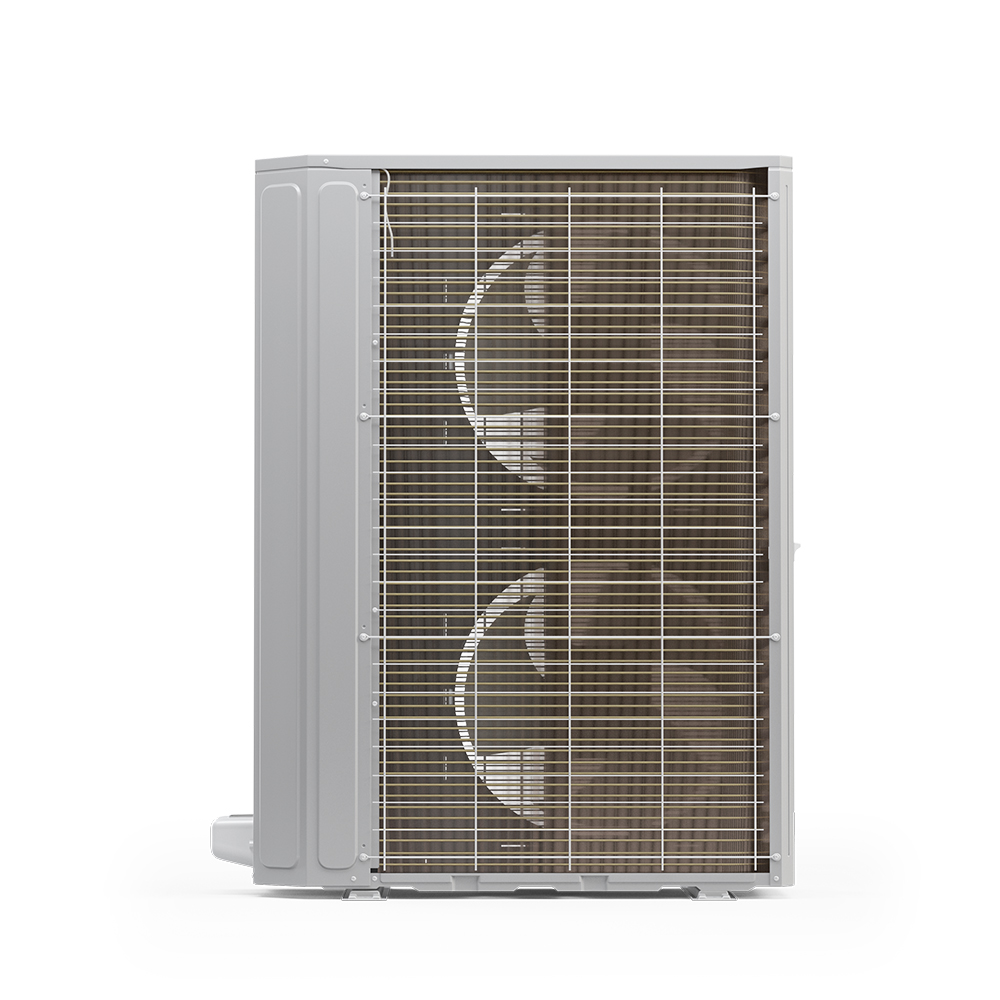

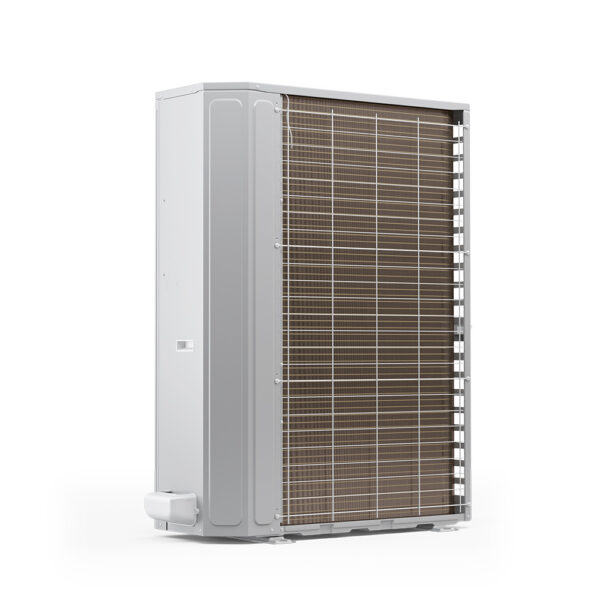

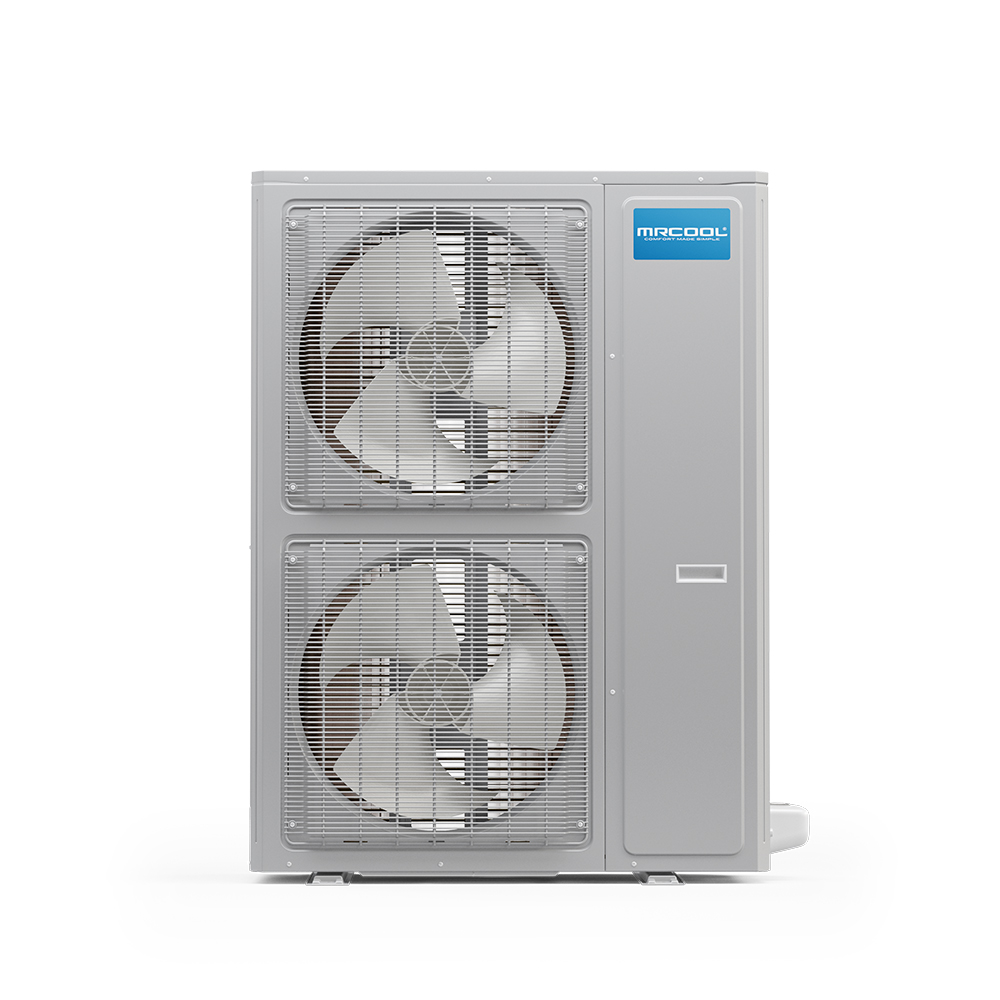

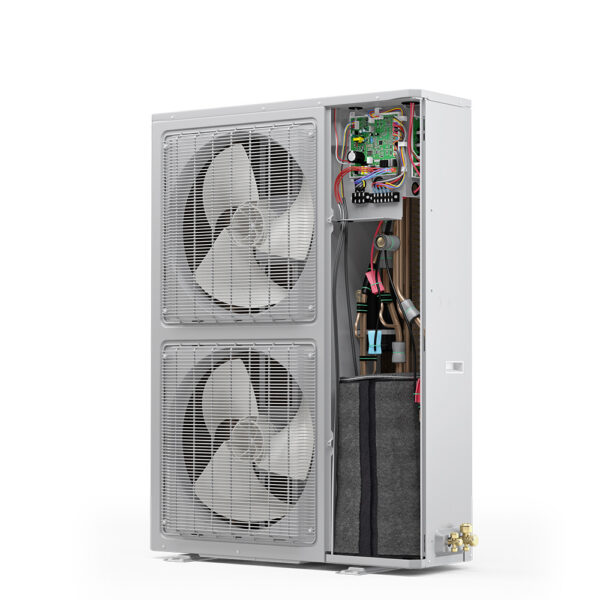

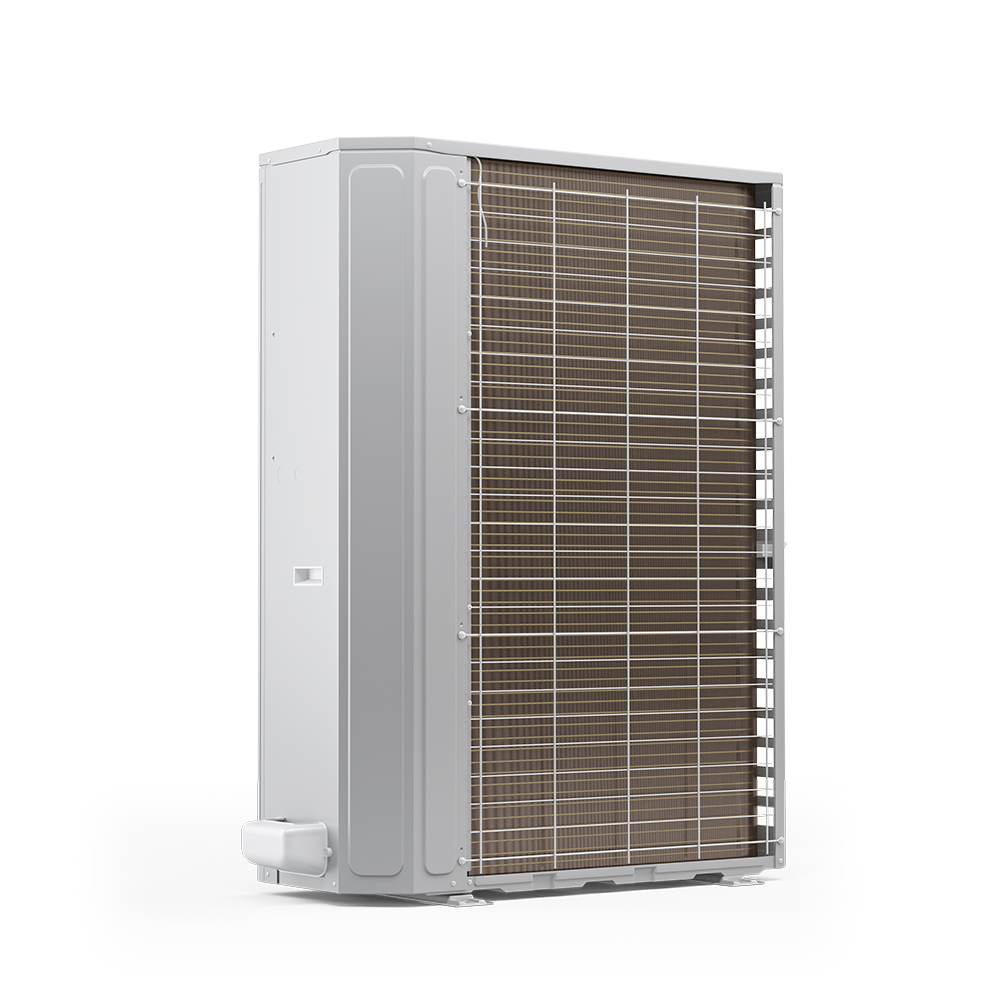

4-5 ton up to 18 SEER Universal Series Condenser
$2,555.00
4-5 ton up to 18 SEER Universal Series Condenser
Out of stock
Description
MRCOOL would like to introduce you to the future of HVAC with its new 17 SEER Ultra-Heat Inverter Unitary Condensing Unit and Air Handler. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don’t be stuck in the past with your traditional system, think ahead with MRCOOL.
- Up to 18 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Two models 36K/60K, heat pump, to cover 24K-60K capacity range
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
- Factory Charged
- ETL and AHRI certified
Product Resources
- Brochure
- Install Manual
- Specs
- Owner Manual
- Service Manual
- Warranty Doc
- Accessory Manual 1
- French Install Manual
- AHRI Certs
- Energy Guide Certs
- Other Certs
Videos
Additional information
| Weight | 308.70 lbs |
|---|---|
| Dimensions | 14.50 × 39.38 × 53.75 in |
| Brand Name | MRCOOL |
| Series | Universal Series 4 / 5 Ton Condenser |
| Series Ext | uni_c |
| Unit Type | Universal Series Heat Pump |
| GTIN | 00810512032938 |
| UPC | 810512032938 |
| Country Of Origin | China |
| SEER | up to 18 |
| SEER2 | 17 |
| Max SEER | 18 |
| EER | 11 |
| EER2 | 11 |
| HSPF | 10.5 |
| HSPF2 | 9 |
| CFM | 4700 |
| Tonnage | 4-5 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 45 |
| Min Circuit Ampacity (A) | 35 |
| Color | Gray |
| Color Family | Gray |
| Refrigerant Type | R-410A |
| Refrigerant Volume (Oz) | 220.48 |
| Decibel Rating (Dba) | 58 |
| Inverter | DC |
| Min Ambient Cool (F) | 5 ~ 129.2 |
| Min Ambient Heat (F) | -22 ~ 75.2 |
| Lineset Included | No |
| Line Set Length | 15, 25, 35, 50 |
| Max Lineset Length (Ft) | 164 / 5 |
| Lineset Fitting Type | Pre-Flared/Sweat & Quick Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Inverter Rotary |
| Condenser Fan Motor Type | Direct Drive |
| Metering Device | EEV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| UL Recognized | No |
| UL Listed | No |
| ETL Listed | Yes |
| ETL Certified | Yes |
| LEED Certified | No |
| Energy Star Compliant | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Registered Warranty | 10 Year Registered Limited Warranty |
| Base Warranty | 5 Year Limited Parts Warranty |
| Base Parts Warranty | 5 year limited extended parts warranty |
| Has Batteries | No |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | No |
| Freight Class | 92.5 |
| Row Number | 664 |
| Price | 2555.00 |
| Net Depth (In) | 14.50 |
| Net Height (In) | 53.75 |
| Net Width (In) | 39.38 |
| Net Weight | 308.70 |
| Gross Depth (In) | 19.38 |
| Gross Height (In) | 59.25 |
| Gross Width (In) | 45.38 |
| Gross Weight (Lbs) | 337 |
