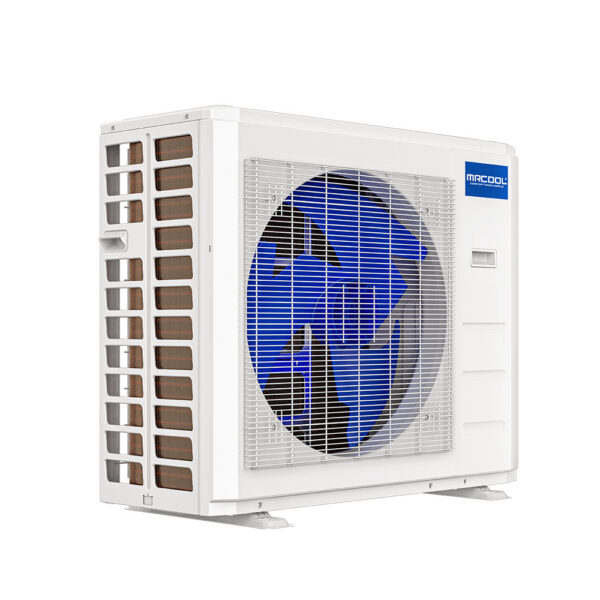

DIY 5th Gen – R454B – 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
$2,242.00
DIY 5th Gen – R454B – 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
Available on backorder
Description
Experience year-round comfort with the MRCOOL® DIY® 18k BTU 208/230V Hyper Heat 21.2 SEER Ductless Heat Pump Single Zone Mini Split Condenser—a high-performance solution designed for easy installation without the need for professional tools or experience. Perfect for spaces ranging from 500-800 sq. ft., this system is compatible with both our stylish wall-mounted air handlers and the discreet DIY® OuttaSight® Ceiling Cassette.
Installation is quick and hassle-free, thanks to the 25-foot Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant. No vacuum pump or gauges required. The included DIYPRO® cable adds extra durability, offering protection against outdoor elements, animals, and everyday wear.
Control your comfort effortlessly with several convenient options: a handheld remote, the SmartHVAC mobile app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating helps resist corrosion, making it a dependable option even in coastal climates.
Advanced features enhance both convenience and efficiency. Auto-Restart resumes unit function after a power outage, Timer allows for customized operation based on your schedule, and Sleep maximizes energy usage while you sleep.
For ultimate peace of mind, the MRCOOL® DIY® 18k BTU Hyper Heat Single Zone Mini Split includes a 7-year compressor and 5-year parts warranty with eligibility for the MRCOOL® Care Program for ultimate performance and confidence.
Product Resources
Additional information
| Weight | 99.87 lbs |
|---|---|
| Dimensions | 13.46 × 35.04 × 26.5 in |
| Brand Name | MRCOOL |
| Series | DIY Hyper Heat |
| Series Ext | diy_5_hh |
| Unit Type | Mini-Split |
| Equipment Type | Condenser |
| GTIN | 00840255588096 |
| UPC | 840255588096 |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-4 | 11 |
| HSPF2-5 | 8.5 |
| CFM | 1765.8 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 19 |
| Color | White |
| Max Coverage Area | 800 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 52.21 |
| Decibel Rating (Dba) | 58 |
| Inverter | Yes |
| Min Ambient Cool (F) | -22 |
| Min Ambient Heat (F) | -22 |
| Lineset Included | Yes |
| Line Set Length | 25ft |
| Max Lineset Length (Ft) | 75 |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 780/700/550 |
| Metering Device | EEV |
| UL Listed | Yes |
| CSA Certified | Yes |
| ETL Certified | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Registered Warranty | 7-Years Compressor, 5-Years Parts |
| Base Warranty | 5-Years Parts |
| Base Parts Warranty | 5 Years |
| Base Compressor Warranty | 7 Years |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU;PR;VI |
| Row Number | 134 |
| Price | 2242.00 |
| Works With | DIYCASSETTE18HP-230D25-O |
| Net Depth (In) | 13.46 |
| Net Height (In) | 26.5 |
| Net Width (In) | 35.04 |
| Net Weight | 99.87 |
| Gross Depth (In) | 18.11 |
| Gross Height (In) | 29.53 |
| Gross Width (In) | 40.55 |
| Gross Weight (Lbs) | 120.15 |
