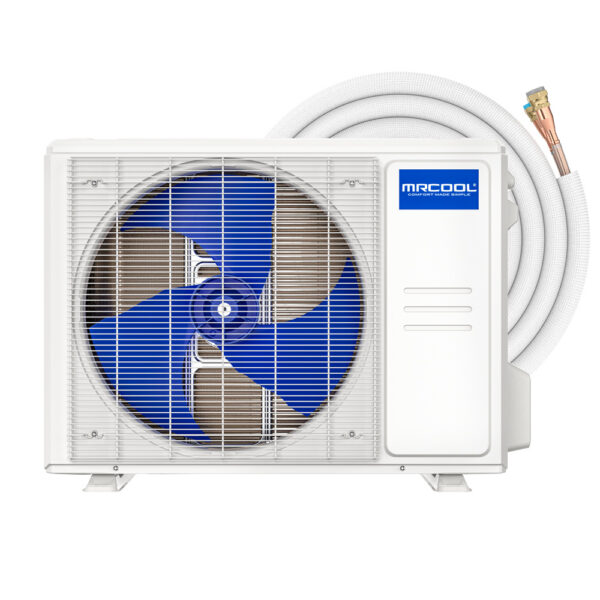

MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Condenser

MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Condenser

SKU: EZPRO-24-HP-C-23016 Category: Brand:

Description

Create the ultimate comfort level in your home or office with the MRCOOL® Easy Pro® 24k BTU Ductless Mini-Split Heat Pump System. Heating or cooling up to 1,000 square feet efficiently with an 18 SEER, this unit is also easy to install thanks to 16 foot pre-charged line set with Fast Connection® fittings. You can choose one of the many operational modes to customize your heating and cooling experience such as Sleep Mode, Auto Mode, or Timer Mode. Maintaining the system is easy too as the filters need only to be rinsed with water before returning to the air handler. Cleaning both the indoor and outdoor units is as simple as wiping them down with a dry or damp cloth without any need for special cleaning products. Controlling the system is easy too thanks to the included remote, the SmartHVAC app on your Apple or Android devices, or your Amazon Alexa and Google Assistant. Feel protected in your purchase with the 1-year compressor warranty and 2-year parts warranty in the unlikely event that something goes wrong. This is a full heating and cooling system that is easy to install and won’t break the bank.

  • Up to 18 SEER
  • Gold Fin® condenser: corrosion resistant – live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Quiet Running

Product Resources

Additional information

Weight97.66 lbs
Dimensions13.46 × 35.04 × 26.50 in
Brand Name

MRCOOL

Series

Easy Pro Condenser

Series Ext

ez_pro

Unit Type

Mini-Split

GTIN

00810063868413

UPC

810063868413

SEER

18

SEER2

18

EER

9

EER2

9

Cop 47

3.08

Cooling Capacity (BTU)

24000

Heating Capacity (BTU)

25000

Voltage (V)

208-230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

35

Min Circuit Ampacity (A)

21

Rated Load

15

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume (Oz)

65.96

Decibel Rating (Dba)

60

Min Ambient Cool (F)

5 ~ 122

Min Ambient Heat (F)

5 ~ 75.2

Liquid Line Size

3/8

Suction Line Size

5/8

Compressor Motor Type

Twin – Rotary

Condenser Fan Motor Rpm

810/720

AHRI Certified

Yes

Registered Warranty

2-year Parts/1-year Compressor

Registered Parts Warranty

2 years

Registered Compressor Warranty

1 year

Proposition 65 Warning

Yes

Row Number

188

Net Depth (In)

13.46

Net Height (In)

26.50

Net Width (In)

35.04

Net Weight

97.66

Gross Depth (In)

17.24

Gross Height (In)

28.74

Gross Width (In)

40.55

Gross Weight (Lbs)

115
