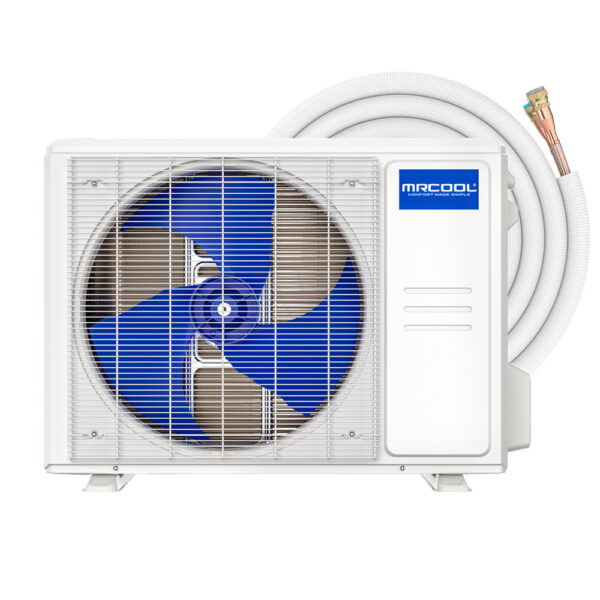

MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Heat Pump Condenser

MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Heat Pump Condenser

SKU: EZPRO-09-HP-C-11516 Category: Brand:

Description

The easy-to-install MRCOOL® Easy Pro® 9k BTU Ductless Mini-Split Heat Pump System can heat or cool a space of up to 350 square feet with a 20 SEER rating. It includes a 16 foot pre-charged line set with Fast Connection® fittings. This system has many features such as the Follow Me® feature that keeps you comfortable no matter where you are in the room, along with convenient operational modes such as Sleep mode, Auto mode, or Timer mode. Maintaining the system is easy as the air filters only need to be rinsed, dried, and replaced, while the indoor and outdoor units only need to be cleaned with a damp or dry cloth. You can control this system with the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant. Enjoy protected comfort thanks to the 1-year compressor warranty and 2-year parts warranty. This energy-efficient, feature-packed HVAC system can be easily installed and easily maintained while providing the ultimate in comfort.

  • Up to 20 SEER
  • Gold Fin® condenser: corrosion resistant – live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Quiet Running

Product Resources

Additional information

Weight54.45 lbs
Dimensions10.63 × 28.35 × 19.49 in
Brand Name

MRCOOL

Series

Easy Pro Condenser

Series Ext

ez_pro

Unit Type

Mini-Split

GTIN

00810063868383

UPC

810063868383

SEER

20

SEER2

20

EER

11.5

EER2

11.5

Cop 47

3.14

Cooling Capacity (BTU)

9000

Heating Capacity (BTU)

10000

Voltage (V)

115

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

30

Min Circuit Ampacity (A)

20

Rated Load

14.5

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume (Oz)

27.87

Decibel Rating (Dba)

55

Min Ambient Cool (F)

5 ~ 122

Min Ambient Heat (F)

5 ~ 75.2

Liquid Line Size

1/4

Suction Line Size

1/2

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

850/500

AHRI Certified

Yes

Registered Warranty

2-year Parts/1-year Compressor

Registered Parts Warranty

2 years

Registered Compressor Warranty

1 year

Proposition 65 Warning

Yes

Row Number

185

Net Depth (In)

10.63

Net Height (In)

19.49

Net Width (In)

28.35

Net Weight

54.45

Gross Depth (In)

14.06

Gross Height (In)

22.83

Gross Width (In)

33.15

Gross Weight (Lbs)

71
