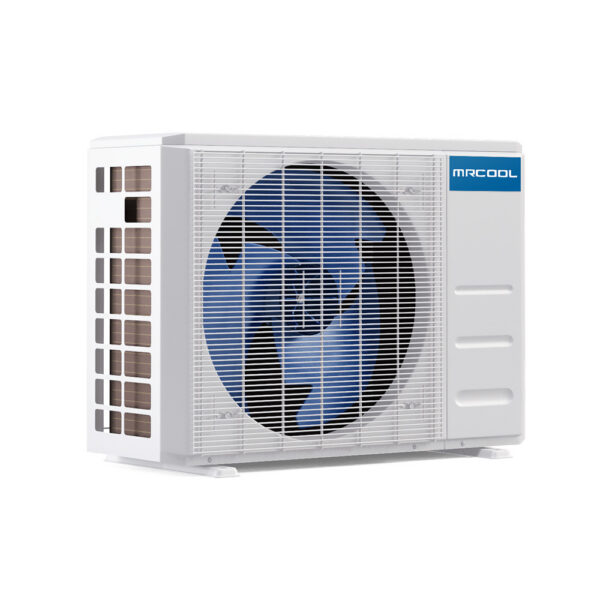

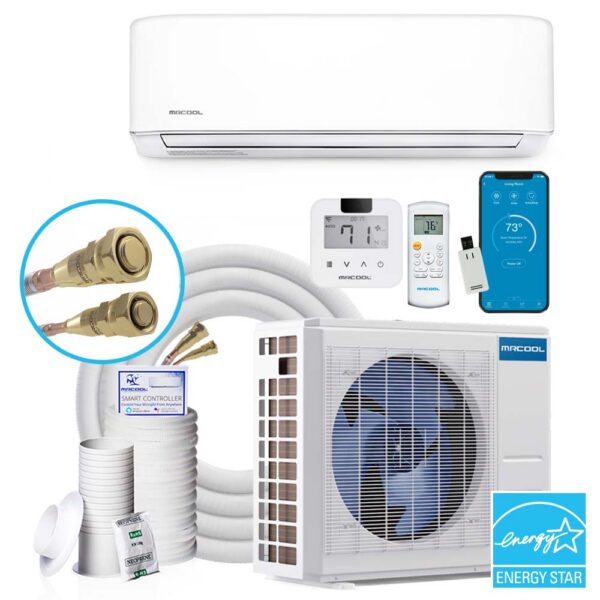

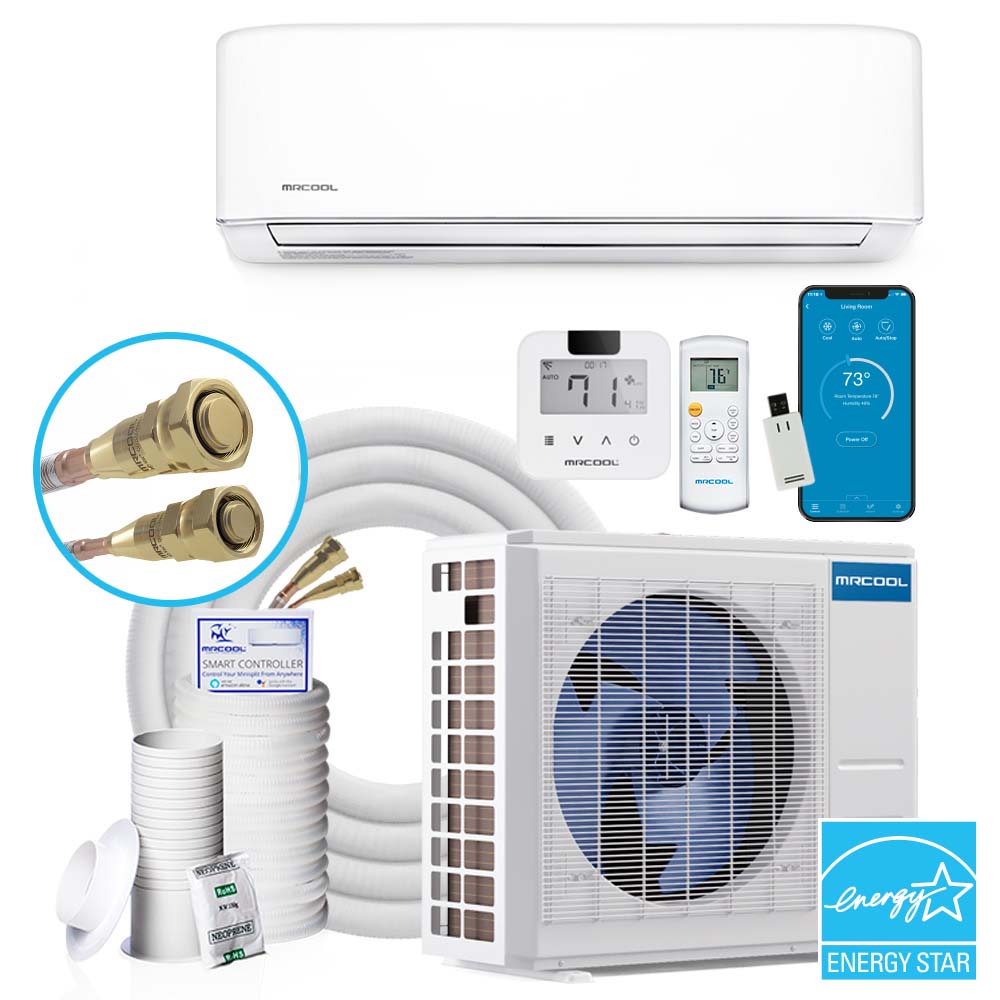

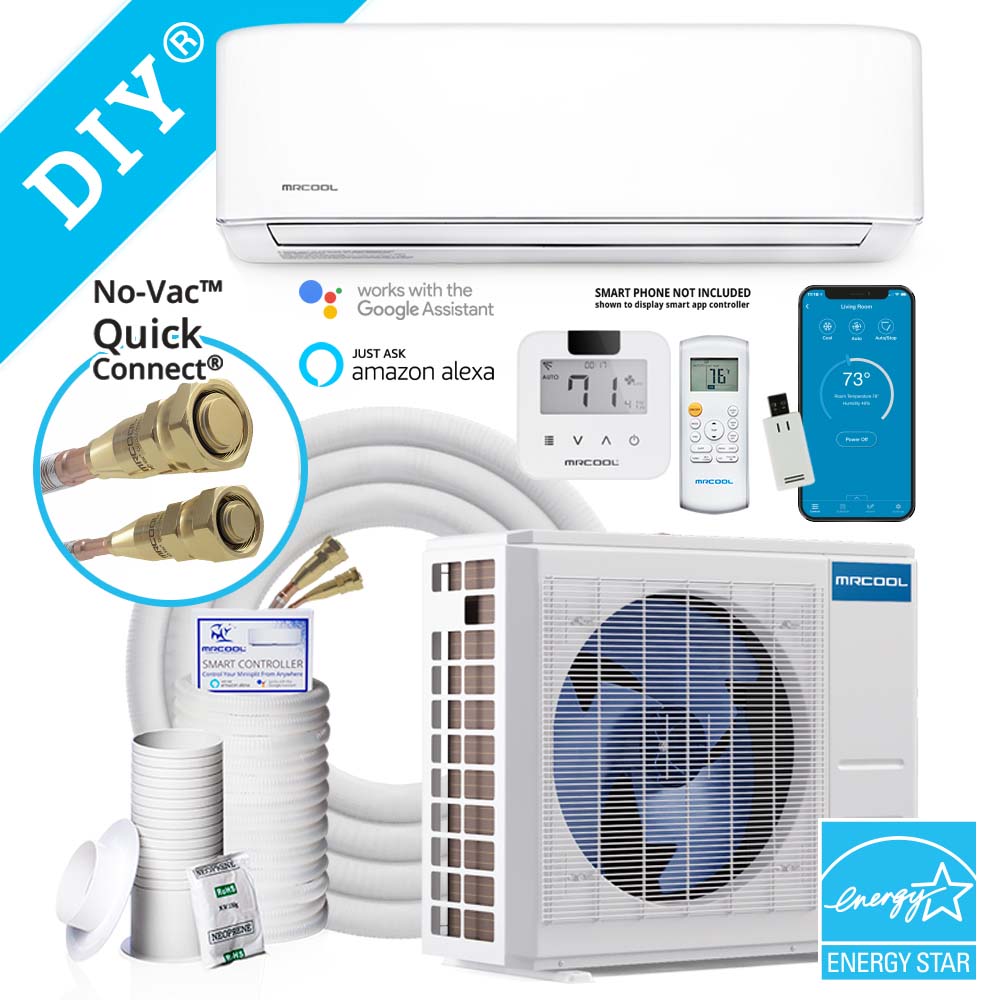

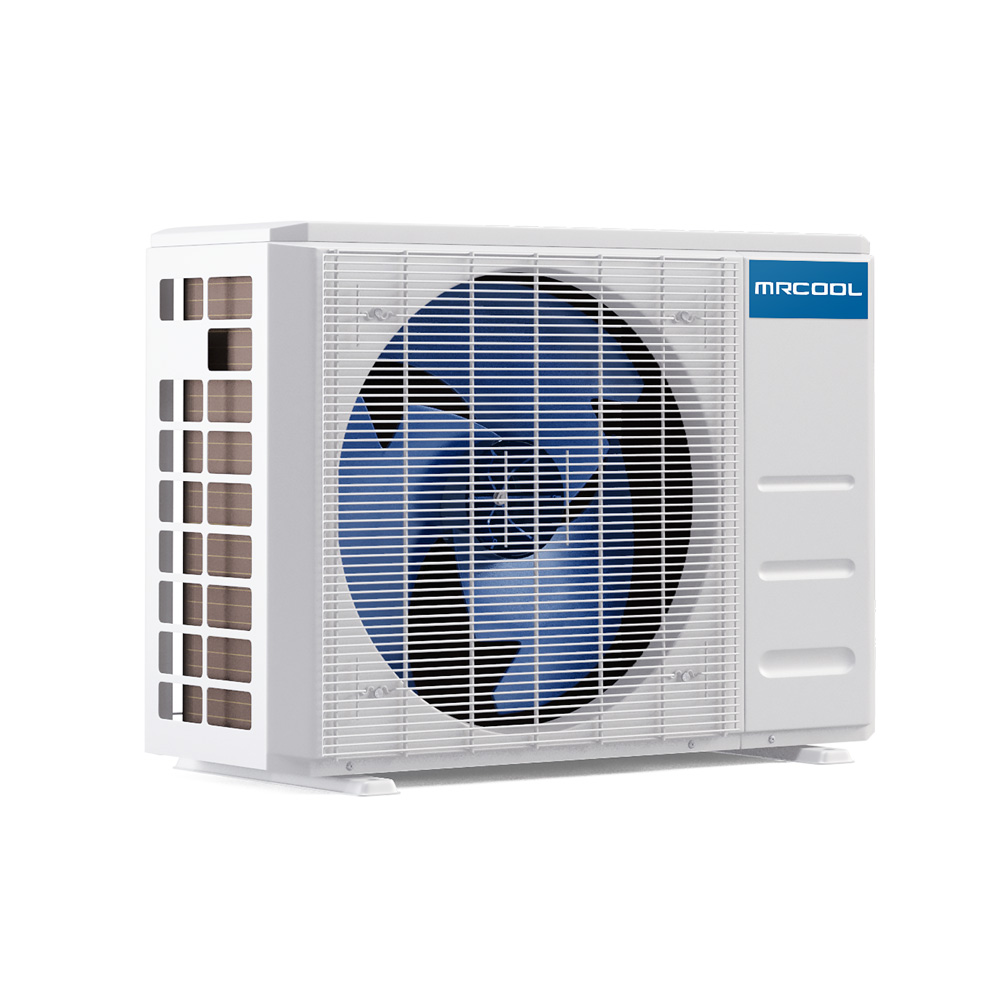

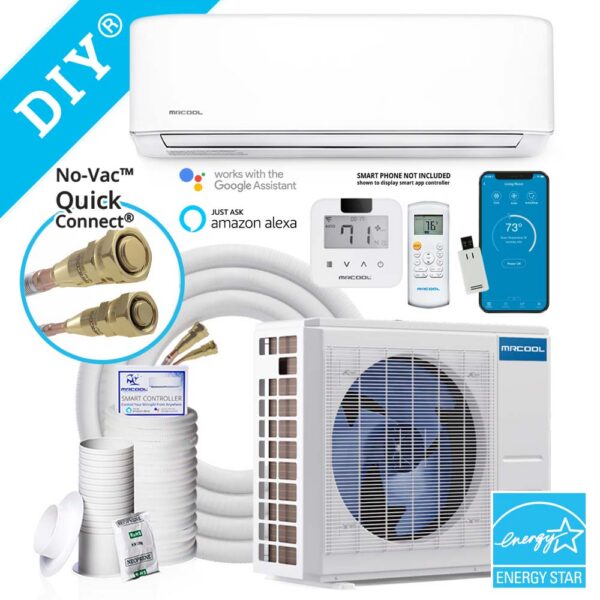

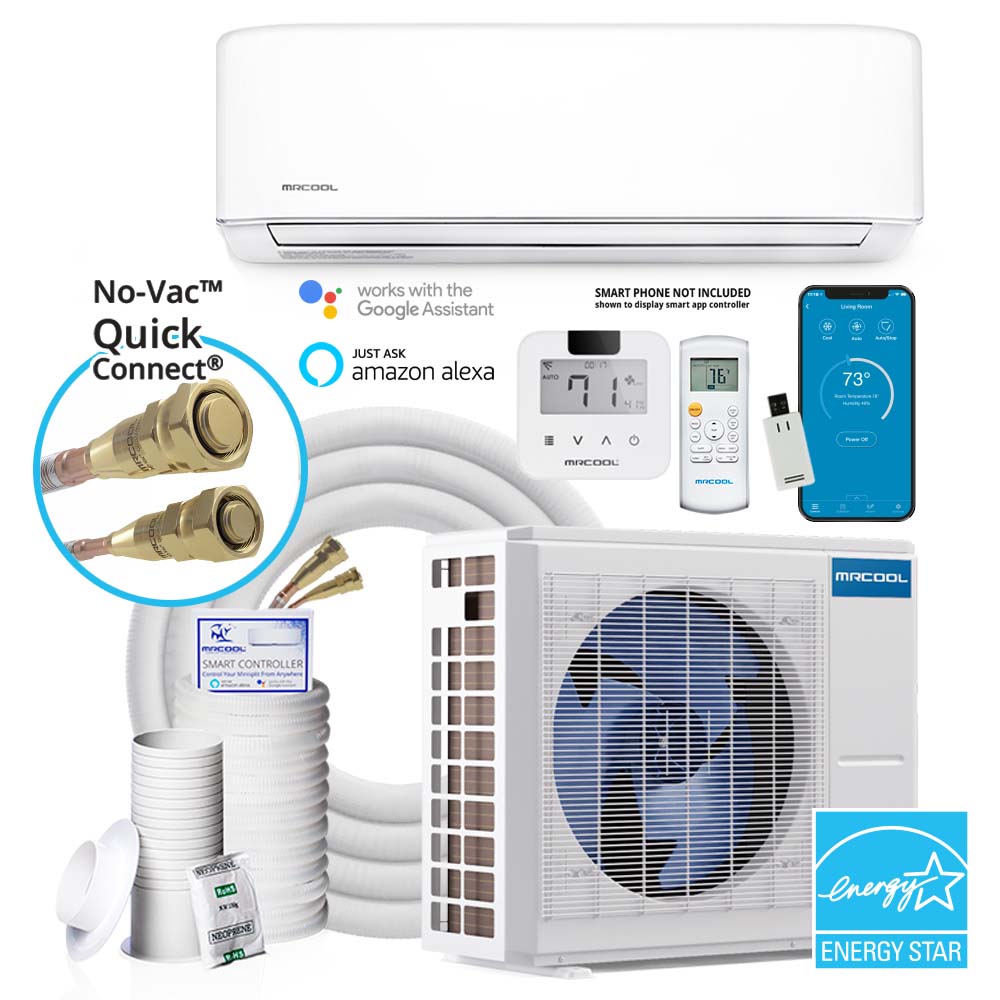

MRCOOL® E Star DIY 3rd Gen 24k BTU 20 SEER Ductless Mini-Split Heat Pump Condenser – 208-230V/60Hz
MRCOOL® E Star DIY 3rd Gen 24k BTU 20 SEER Ductless Mini-Split Heat Pump Condenser – 208-230V/60Hz
Description
Introducing the MRCOOL® E Star DIY 3rd Gen 24k BTU 20 SEER Ductless Mini-Split Heat Pump. These are ductless mini-split heat pumps with enhanced WIFI engineered to make setup not only quick and easy, but the MRCOOL DIY E Star Series is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment. The 24,000 BTU unit is 20 SEER and designed to heat and cool a up to a 1000 square foot space efficiently and effectively. Our SmartHVAC app is compatible with Amazon Alexa and Google assistant. You can also control your DIY anywhere with your Apple or Android smart device with an Internet connection. Doing it yourself has never been easier with the new MRCOOL DIY E Star Series. This unit is shipped in two boxes.
- Our Easy DIY installation: pre-charged quick connect line doesn't require special tools, equipment, or training
- SmartHVAC app: WIFI control – control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5?F exterior temperatures ? the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
- The unit is 20 SEER and designed to heat and cool a single 1000 square foot space
- 7-Year compressor warranty and 5-year parts warranty
- Auto-restart: – power outage? No worries, the MRCOOL DIY E star Series auto-restart has the unit running again immediately
- Gold Fin® condenser: corrosion-resistant coastal living – don't worry, our condenser is built to resist long term corrosion
- Louver position memory remembers so you don't need to – horizontal louver automatically moves to the same position you set the last time the unit was turned on
- Automatic leakage detection technology to alert you should a problem arise
Product Resources
- Brochure
- Install Manual
- Specs
- Owner Manual
- Remote Manual
- Technical Manual
- Warranty Doc
- Accessory Manual 1
- French Install Manual
- French Owner Manual
- French Remote Manual
- French Tech Manual
- Spanish Remote
- AHRI Certs
- Energy Guide Certs
Videos
Additional information
| Weight | 127.65 lbs |
|---|---|
| Dimensions | 16.14 × 37.24 × 31.89 in |
| Brand Name | MRCOOL |
| Series | DIY 3rd Gen E STAR Condenser |
| Series Ext | diy_b |
| Unit Type | Mini-Split |
| GTIN | 00810512033447 |
| UPC | 810512033447 |
| Country Of Origin | China |
| SEER | 20 |
| EER | 12.5 |
| HSPF | 10 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 23000 |
| Heating Capacity (BTU) | 25000 |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 18 |
| Max Coverage Area | 1000 |
| Refrigerant Type | R-410A |
| Inverter | Yes |
| Min Ambient Heat (F) | 5 |
| Line Set Length | 16 or 25 |
| Max Lineset Length (Ft) | 98 |
| Liquid Line Fitting | 1/2 |
| Liquid Line Size | 3/8 |
| Suction Line Fitting | 3/4 |
| Suction Line Size | 5/8 |
| Control Type | LED |
| Condenser Fan Motor Rpm | 700/750/85 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Low Voltage Compensation | No |
| Overload Protection | Yes |
| Adjustable Thermostat | Yes |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Sleep Mode | No |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With iOS | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| UL Recognized | No |
| UL Listed | No |
| CSA Listed | Yes |
| CSA Certified | Yes |
| ETL Listed | No |
| ETL Certified | No |
| Energy Star Compliant | No |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Registered Warranty | 5-year Parts/7-year Compressor/1-year Remote |
| Registered Parts Warranty | 5-year |
| Registered Compressor Warranty | 7-year |
| Registered Remote Warranty | 1-year |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Freight Class | 250 |
| Row Number | 75 |
| Net Depth (In) | 16.14 |
| Net Height (In) | 31.89 |
| Net Width (In) | 37.24 |
| Net Weight | 127.65 |
| Gross Depth (In) | 19.88 |
| Gross Height (In) | 37.01 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 160 |
