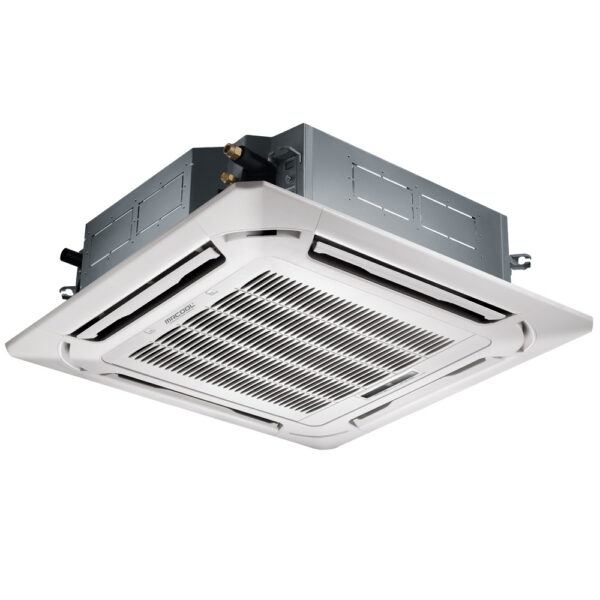

Olympus 12,000 BTU 1 Ton Ductless Mini-Split Ceiling Cassette with Panel – 230V/60HZ
Olympus 12,000 BTU 1 Ton Ductless Mini-Split Ceiling Cassette with Panel – 230V/60HZ
Description
Product Resources
Additional information
| Weight | 35.27 lbs |
|---|---|
| Dimensions | 22.44 × 22.44 × 10.24 in |
| Brand Name | MRCOOL |
| Series | Olympus Multi |
| Series Ext | oly_multi |
| Unit Type | Mini Split |
| GTIN | 00810512030453 |
| UPC | 810512030453 |
| Country Of Origin | China |
| CFM | 379.05/309.01/260.74 |
| Tonnage | 1 |
| Cooling Capacity (BTU) | 12000 |
| Heating Capacity (BTU) | 12000 |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ceiling |
| Color | White |
| Color Family | White |
| Max Coverage Area | 1000 |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Decibel Rating (Dba) | 40/36/32.5 |
| Decibel Rating Low (Dba) | 32.5 |
| Decibel Rating High (Dba) | 40 |
| Air Flow Direction | Downflow |
| Number Of Speeds | 4 (Variable) |
| Oscillation | No |
| Inverter | Yes |
| Liquid Line Fitting | 3/8 |
| Liquid Line Size | 1/4 |
| Suction Line Fitting | 5/8 |
| Suction Line Size | 1/2 |
| Control Type | LED |
| Blower Motor Rpm | 680/580/500 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Low Voltage Compensation | No |
| Overload Protection | Yes |
| Adjustable Thermostat | Yes |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Sleep Mode | No |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With iOS | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | No |
| ETL Listed | Yes |
| Energy Star Compliant | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Registered Warranty | 5-year Parts/7-year Compressor/1-year Remote |
| Base Warranty | None |
| Registered Parts Warranty | 5-year |
| Base Parts Warranty | None |
| Registered Compressor Warranty | 7-year |
| Base Compressor Warranty | None |
| Registered Remote Warranty | 1-year |
| Base Remote Warranty | None |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU PR;VI |
| Freight Class | 85 |
| Row Number | 345 |
| Net Depth (In) | 22.44 |
| Net Height (In) | 10.24 |
| Net Width (In) | 22.44 |
| Net Weight | 35.27 |
| Gross Depth (In) | 26.06 |
| Gross Height (In) | 12.48 |
| Gross Width (In) | 26.06 |
| Gross Weight (Lbs) | 41 |
