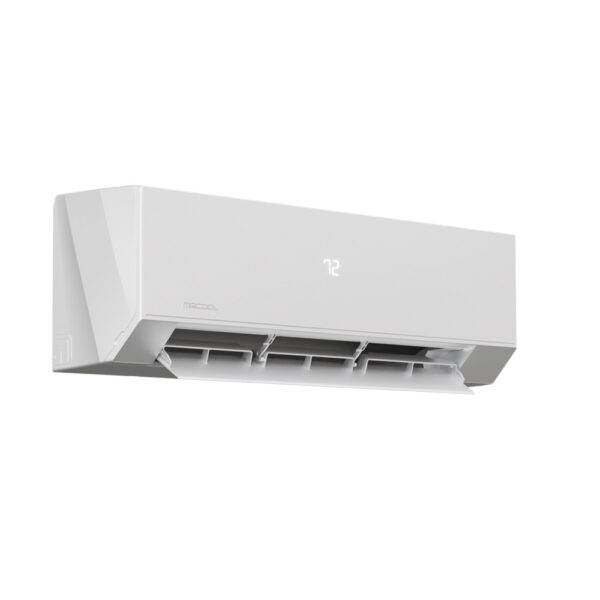

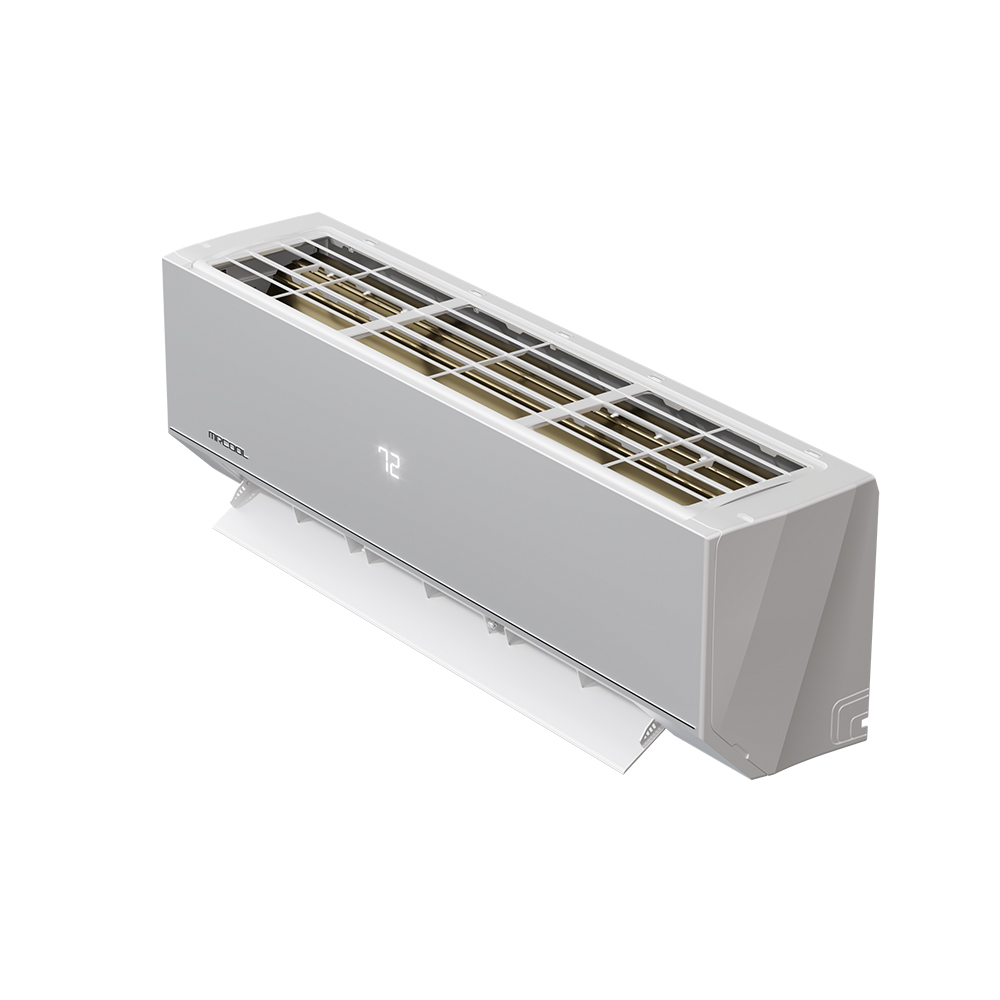

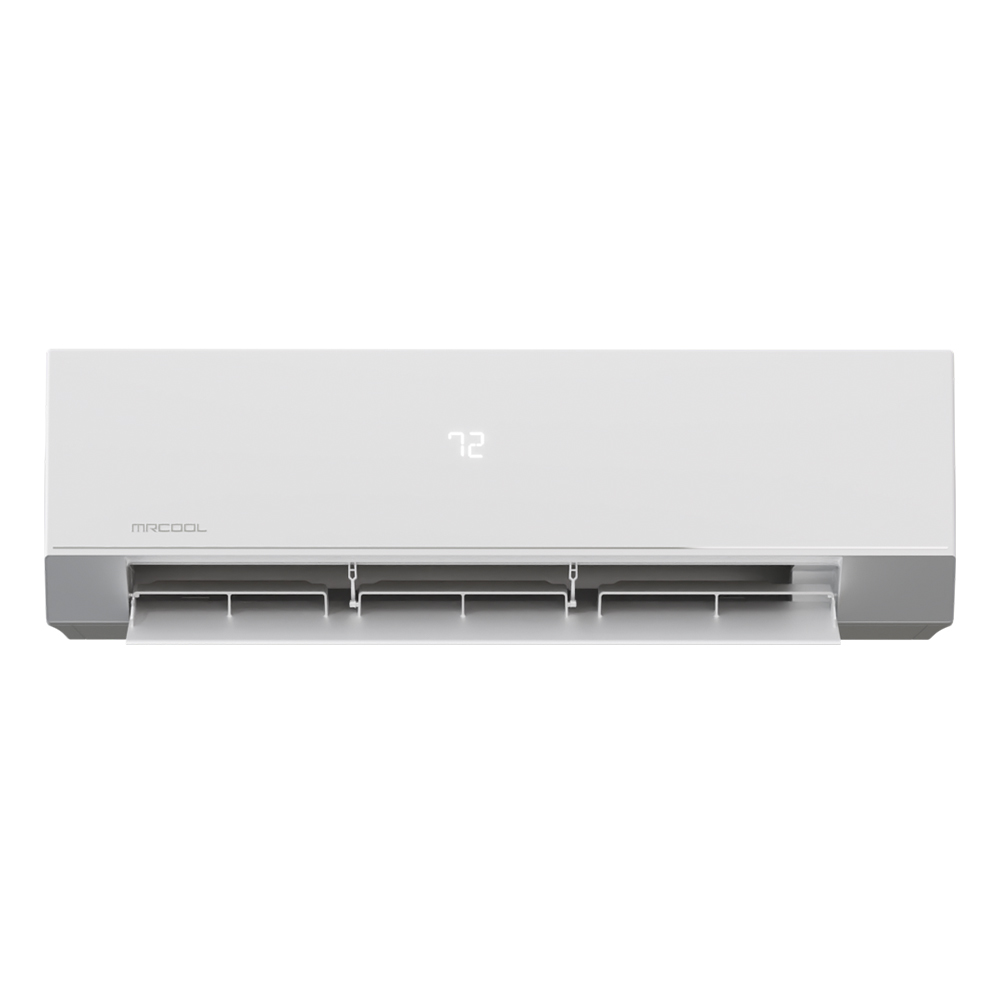

Olympus 24,000 BTU 2 Ton Ductless Mini-Split Wall Mounted Air Handler – 230V/60Hz

$588.00

Olympus 24,000 BTU 2 Ton Ductless Mini-Split Wall Mounted Air Handler – 230V/60Hz

Available on backorder

SKU: O-24-HP-WMAH-230C-O Category: Brand:

Description

Stay comfortable all year long with the MRCOOL® OLYMPUS ESTAR® 24k Series air handler, a reliable solution for both heating and cooling. Designed to efficiently serve areas up to 1050 square feet, it’s an excellent fit for large rooms, offices, garages, and more. Its compact design also makes for an easy, straightforward installation.
With built-in Wi-Fi capabilities and the MRCOOL® Smart HVAC app, you can control the system from your smartphone or tablet—anytime, anywhere. Prefer a hands-on approach? Use the included remote control for quick and simple access to your comfort settings.
Built for high efficiency, the unit features a SEER2 rating of 23, EER2 of 14, and HSPF2-4 rating of 11.7, helping you save on energy costs without compromising performance. Multiple indoor fan speed options and whisper-quiet operation at just 51.5 dB ensure a peaceful and customized climate experience.
The system now uses R-454B refrigerant, an environmentally friendly choice that supports greener living while delivering the performance you expect.
You’ll also enjoy versatile control options, including compatibility with Amazon Alexa and Google Assistant for voice-activated comfort, in addition to app and remote access.
Backed by an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and 5-year parts protection, the MRCOOL® OLYMPUS ESTAR® 24k Series air handler offers advanced technology, dependable performance, and year-round climate control you can count on.

Product Resources

Additional information

Weight43.65 lbs
Dimensions11.02 × 47.13 × 14.61 in
Brand Name

MRCOOL

Series

Olympus 4th Gen Air Handlers

Series Ext

oly_4

Unit Type

Mini-Split

GTIN

00840255587730

UPC

840255587730

Tonnage

2

Voltage (V)

208/230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

3

Mount Type

Wall

Color

White

Max Coverage Area

Up to 1050

Refrigerant Type

R-454B

Decibel Rating (Dba)

54.5/43.5/38.5/27/16

Decibel Rating Low (Dba)

16

Decibel Rating High (Dba)

54.5

Number Of Speeds

5 (Variable)

Oscillation

Yes

Lineset Fitting Type

Flare

Liquid Line Size

3/8

Suction Line Size

5/8

Blower Motor Speeds

812.3/618/412/317.8/317.8

Blower Motor Rpm

1000/850/630

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Sleep Mode

Yes

Auto Cool

Yes

Wifi Compatibility

Yes

App Compatibility

Yes

Works With iOS

Yes

Works With Android

Yes

Remote Control Included

Yes

UL Listed

Yes

CSA Listed

Yes

ETL Listed

Yes

Base Warranty

5-Year Parts

Base Parts Warranty

5-Year

Base Remote Warranty

5 Year

Registered Labor Warranty

None

Base Labor Warranty

None

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU, PR, VI

Row Number

303

Price

588.00

Works With

O-ES-24-HP-C-230C-O1
MULTI4-27HP230C-O
MULTI5-36HP230C-O
MULTI6-48HP230C-O

Net Depth (In)

11.02

Net Height (In)

14.61

Net Width (In)

47.13

Net Weight

43.65

Gross Depth (In)

14.17

Gross Height (In)

17.91

Gross Width (In)

50.39

Gross Weight (Lbs)

55.56
