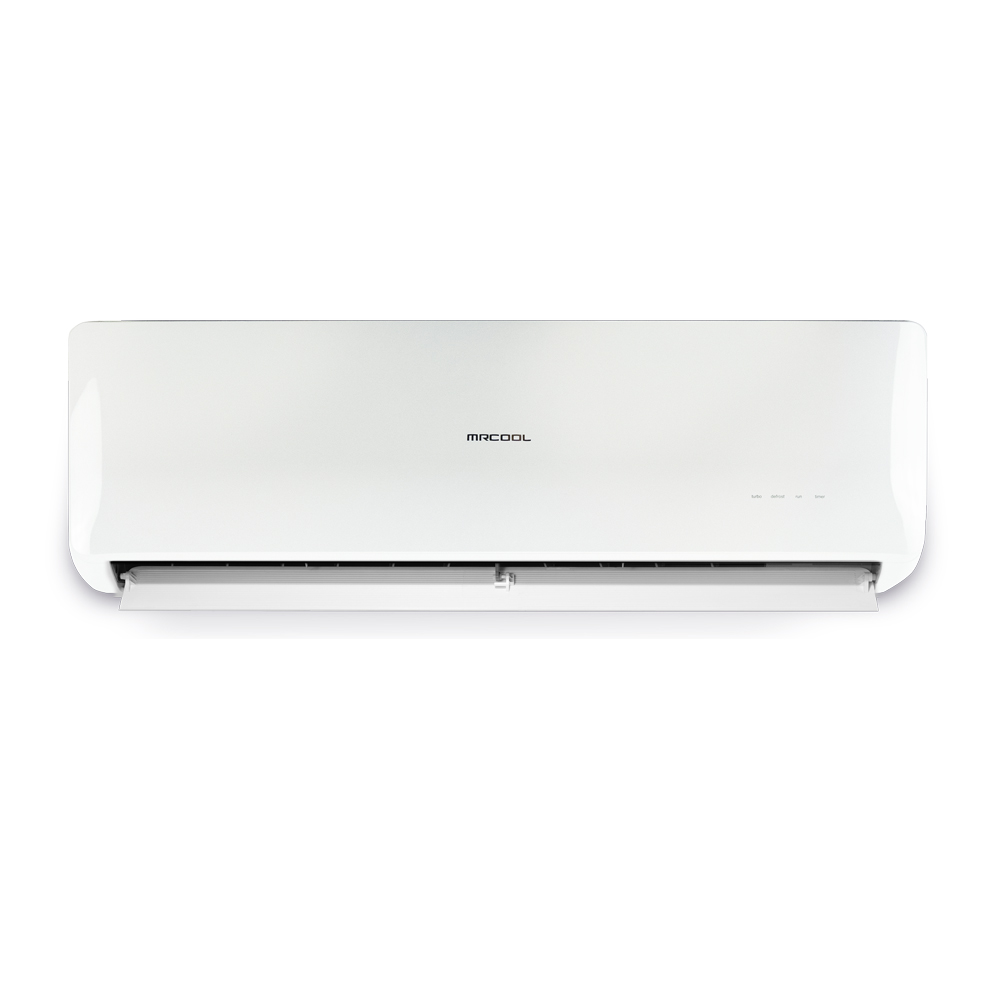

Olympus 24,000 BTU 2 Ton Ductless Mini-Split Wall Mounted Air Handler – 230V/60Hz
Olympus 24,000 BTU 2 Ton Ductless Mini-Split Wall Mounted Air Handler – 230V/60Hz
Description

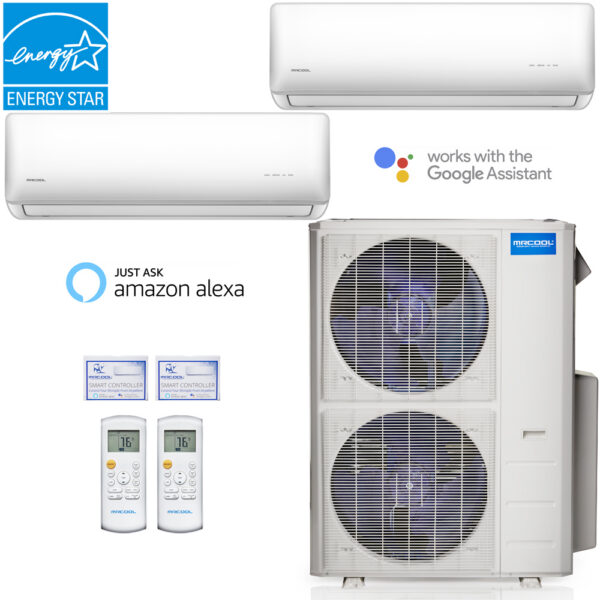

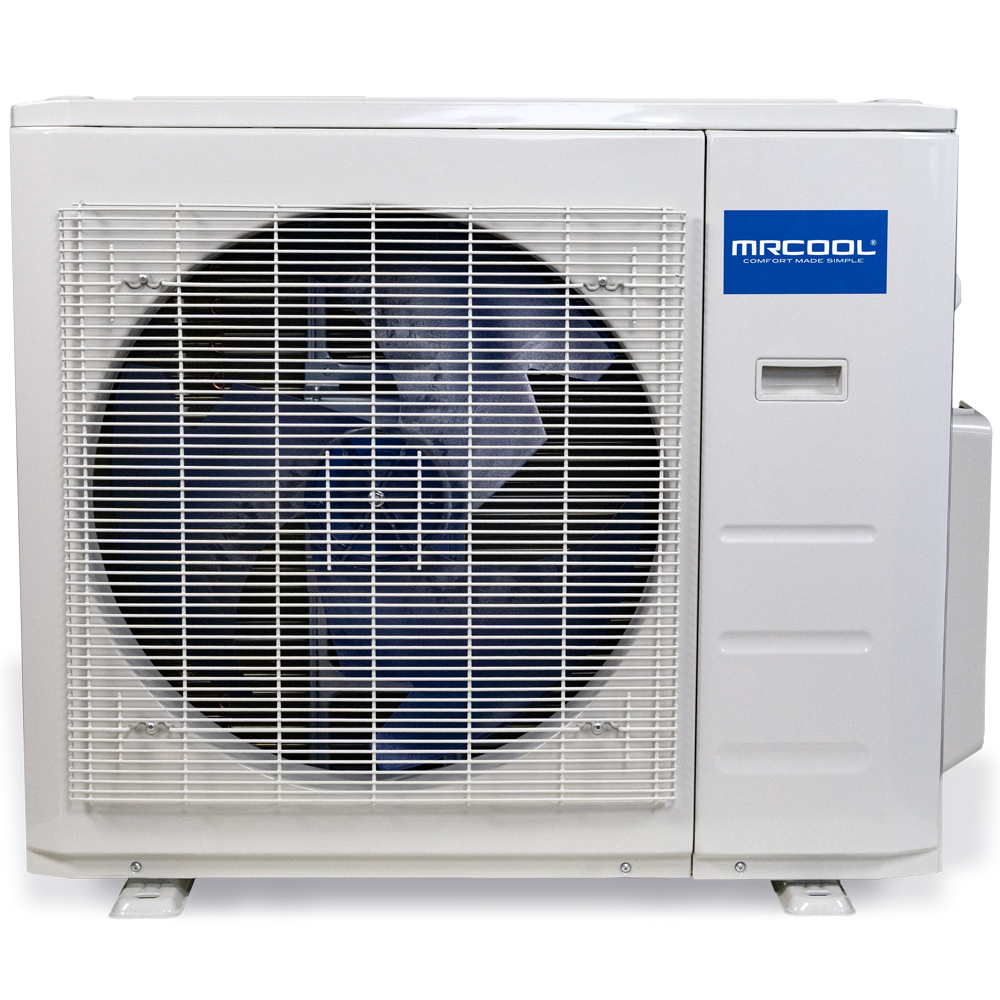

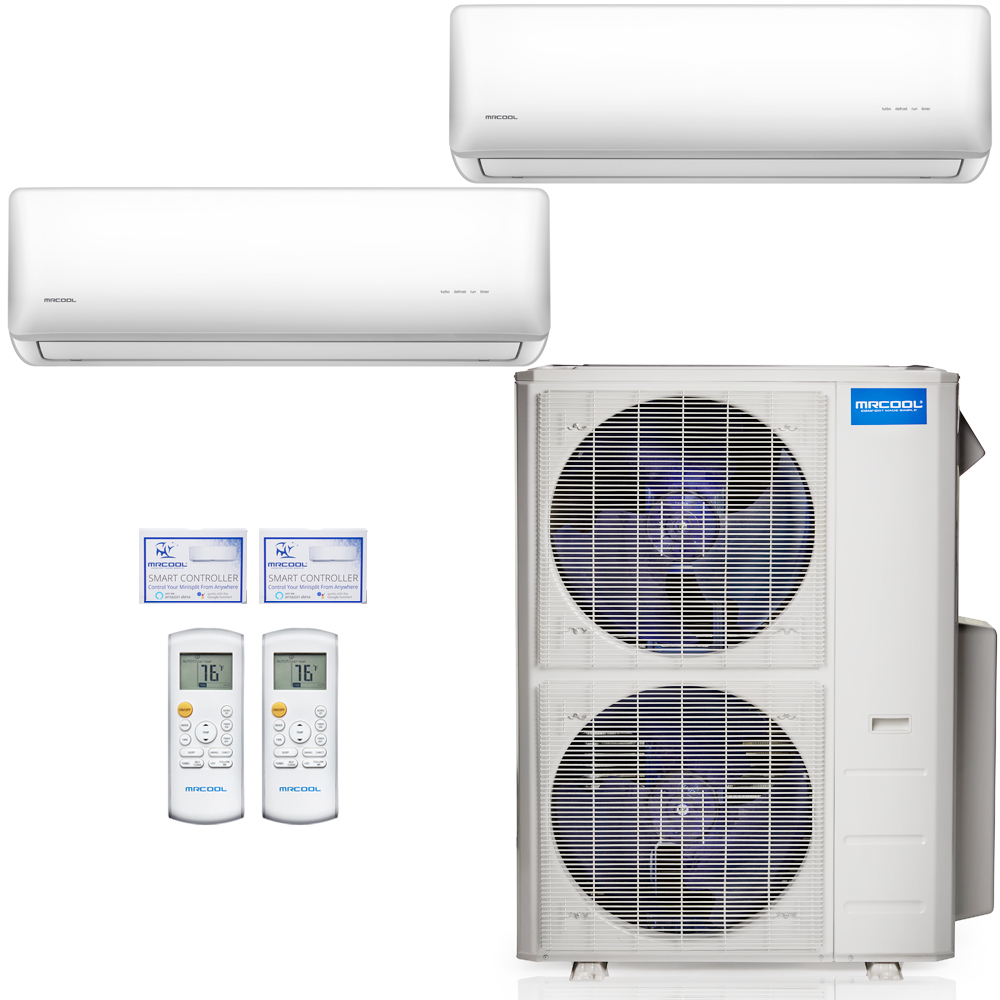

This system is meant to be installed by a HVAC technician. The MRCOOL Olympus is THE whole house mini-split solution. Up to 5 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don’t like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER and 10.3 HSPF. This 2 ton 24,000 BTU wall mounted air handler can be matched with any Olympus condenser to condition rooms that are approximately 1000 sq ft.
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, Gold Fin® anti-corrosion and auto restart functions
- High efficient 22.4 SEER 10.20 HSPF performance
- Energy Star certified: estimated national average annual operating cooling cost is 272 dollars based on AHRI certificate #8977710
Product Resources
Additional information
| Weight | 40.12 lbs |
|---|---|
| Dimensions | 10.16 × 46.69 × 13.39 in |
| Brand Name | MRCOOL |
| Series | Olympus Multi |
| Series Ext | oly_multi_x |
| Unit Type | Mini Split |
| GTIN | 00856536005824 |
| UPC | 856536005824 |
| Country Of Origin | China |
| SEER | Up to 22.4 |
| EER | Up to 12.5 |
| HSPF | 10.2 |
| CFM | 775/715/585 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 24000 |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 30 |
| Min Circuit Ampacity (A) | 20 |
| Mount Type | Wall |
| Color | White |
| Color Family | White |
| Max Coverage Area | 2000 |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Decibel Rating (Dba) | 39.4-50 |
| Decibel Rating Low (Dba) | 39.4 |
| Decibel Rating High (Dba) | 50 |
| Air Flow Direction | 4-way |
| Number Of Speeds | 4 (Variable) |
| Oscillation | Yes |
| Inverter | Yes |
| Liquid Line Fitting | 1/2 |
| Liquid Line Size | 3/8 |
| Suction Line Fitting | 3/4 |
| Suction Line Size | 5/8 |
| Control Type | LED |
| Filter Type | Washable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Low Voltage Compensation | No |
| Overload Protection | Yes |
| Adjustable Thermostat | Yes |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Sleep Mode | No |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With iOS | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | No |
| ETL Listed | Yes |
| Energy Star Compliant | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Registered Warranty | 5-year Parts/7-year Compressor/1-year Remote |
| Base Warranty | None |
| Registered Parts Warranty | 5-year |
| Base Parts Warranty | None |
| Registered Compressor Warranty | 7-year |
| Base Compressor Warranty | None |
| Registered Remote Warranty | 1-year |
| Base Remote Warranty | None |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Row Number | 346 |
| Net Depth (In) | 10.16 |
| Net Height (In) | 13.39 |
| Net Width (In) | 46.69 |
| Net Weight | 40.12 |
