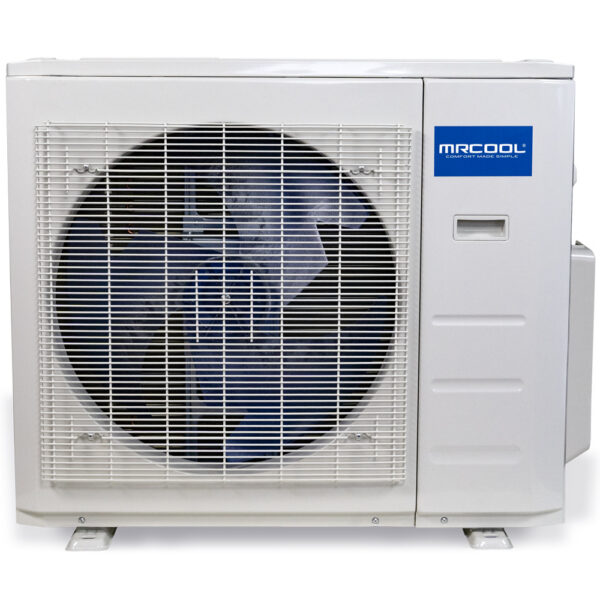

Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz - Image 1

Olympus 36,000 BTU Ductless Mini-Split Condenser – 230V/60Hz

Olympus 36,000 BTU Ductless Mini-Split Condenser – 230V/60Hz

Add to wishlist
SKU: MULTI4-36HP230V1 Category: Brand:

Description

This system is meant to be installed by a HVAC technician. The MRCOOL Olympus is THE whole house mini-split solution. Up to 5 zones, the Olympus offers aesthetically pleasing wall mounted, and ceiling cassette units. If you don’t like saving money this system is not for you, otherwise please enjoy keeping more money in your pocket every month with efficiency ratings up to 23 SEER and 10.3 HSPF. This 1.5 ton 18,000 BTU wall mounted air handler can be matched with any Olympus condenser to condition rooms that are approximately 750 sq ft.

  • Installation by a licensed professional required where applicable
  • 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant
  • Gold Fin® condenser: corrosion resistant – live on the coast? don't worry, our condenser is built to resist long term corrosion
  • High efficient 22.5 SEER 10.20 HSPF performance
  • Energy Star certified: estimated national average annual operating cooling cost is 203 dollars based on AHRI certificate #8977709

Product Resources

Additional information

Weight156.53 lbs
Dimensions16.14 × 37.24 × 31.89 in
Brand Name

MRCOOL

Series

Olympus Multi

Series Ext

oly_multi_x

Unit Type

Mini Split

GTIN

00856536005855

UPC

856536005855

SEER

22.5

EER

11.5

HSPF-4

10.2

HSPF-5

8.7

CFM

2147.06

Cooling Capacity (BTU)

36000

Heating Capacity (BTU)

36000

Voltage (V)

208-230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

45

Min Circuit Ampacity (A)

30

Color

White

Color Family

White

Max Coverage Area

1500

Zone Capacity

4

Refrigerant Type

R-410A

Refrigerant Volume (Oz)

105.8

Decibel Rating (Dba)

61

Inverter

Yes

Liquid Line Fitting

3/8

Liquid Line Size

1/4

Suction Line Fitting

5/8

Suction Line Size

3/8+1/2

Condenser Fan Motor Rpm

900/750/600

UL Listed

Yes

ETL Listed

Yes

Energy Star Compliant

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

5-year Parts/7-year Compressor/1-year Remote

Registered Parts Warranty

5-year

Registered Compressor Warranty

7-year

Registered Remote Warranty

1-year

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU PR;VI

Row Number

350

Net Depth (In)

16.14

Net Height (In)

31.89

Net Width (In)

37.24

Net Weight

156.53

Gross Depth (In)

19.69

Gross Height (In)

34.84

Gross Width (In)

42.91

Gross Weight (Lbs)

168
