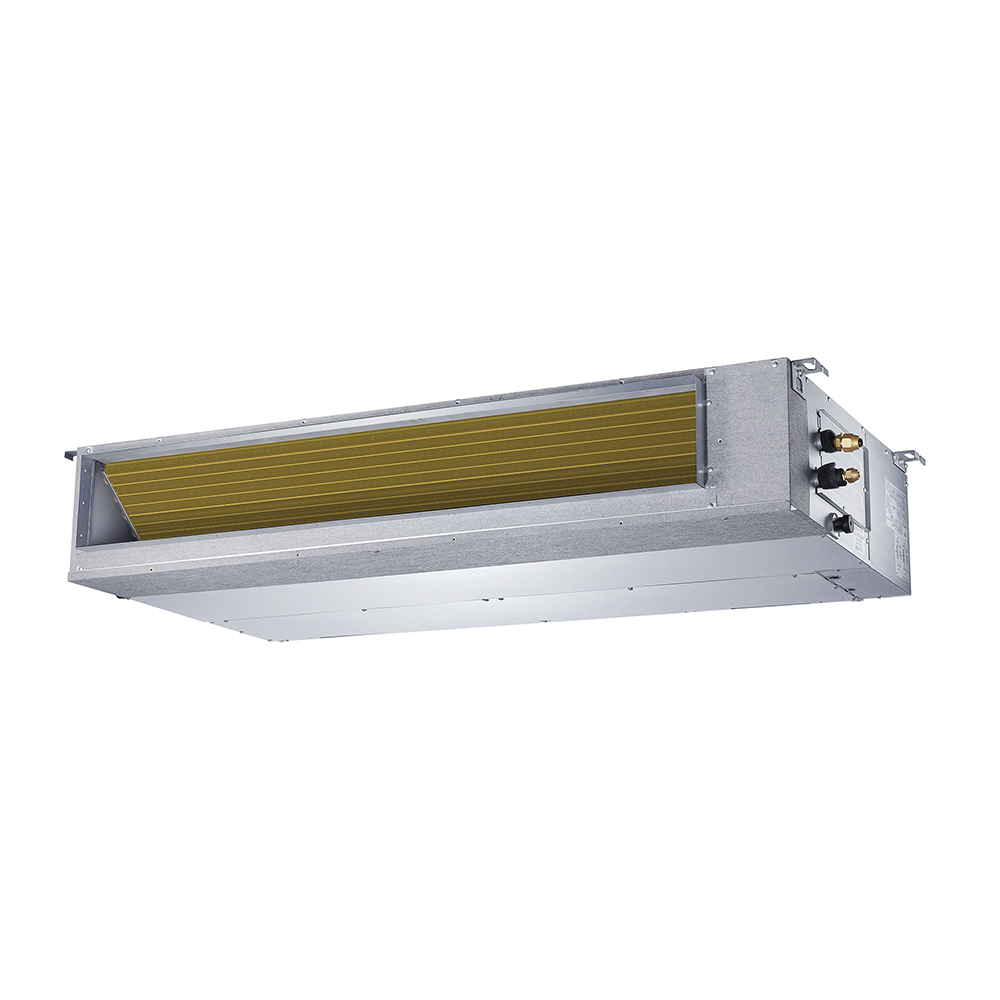

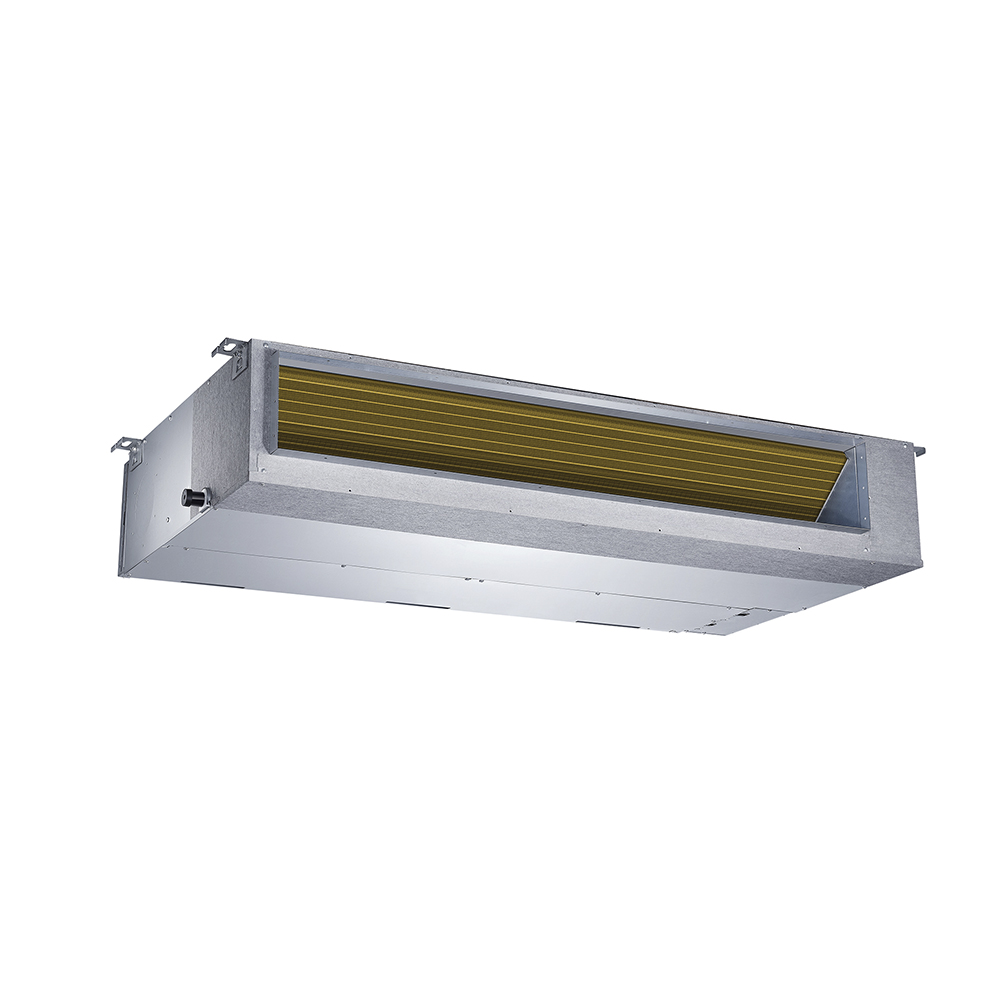

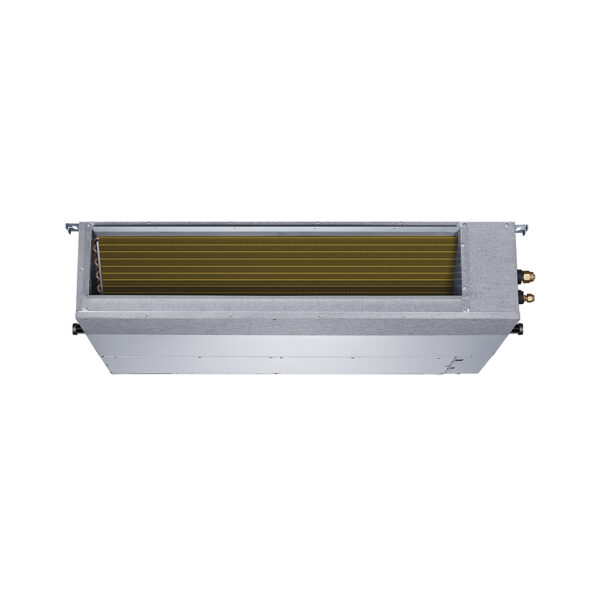

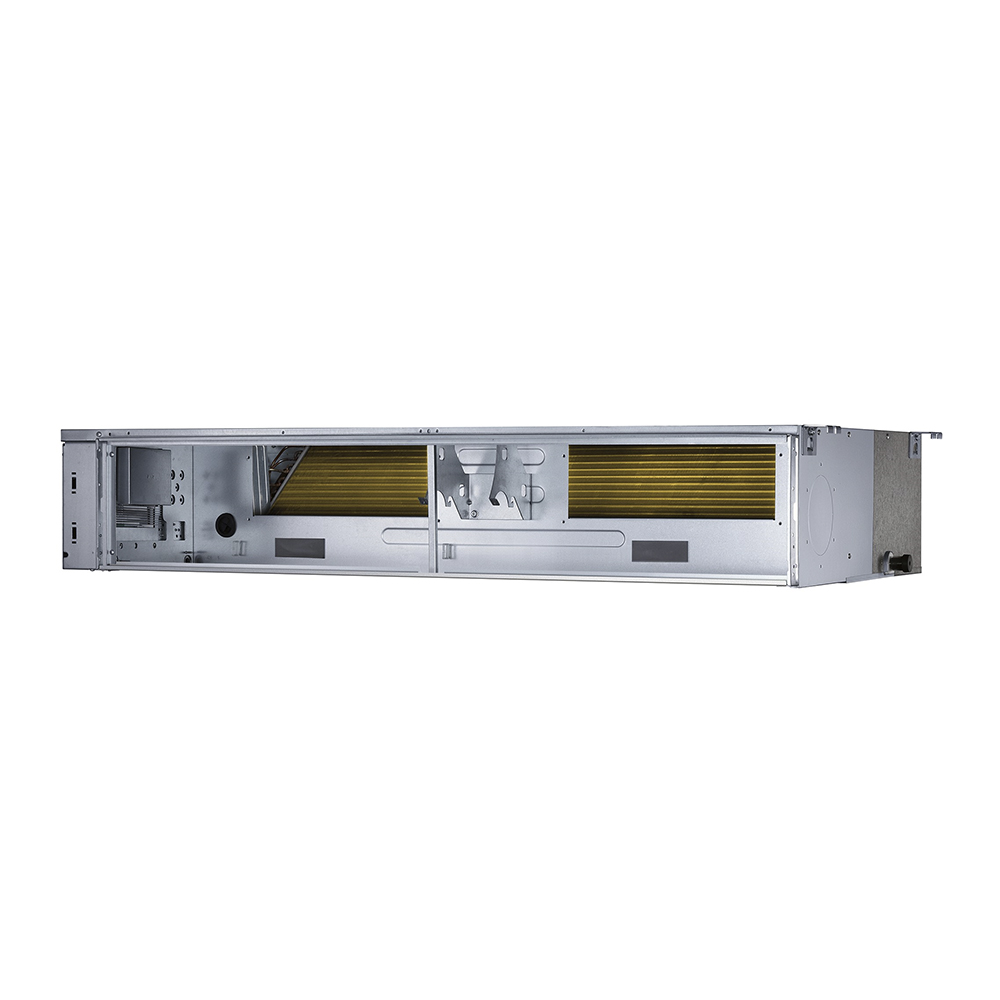

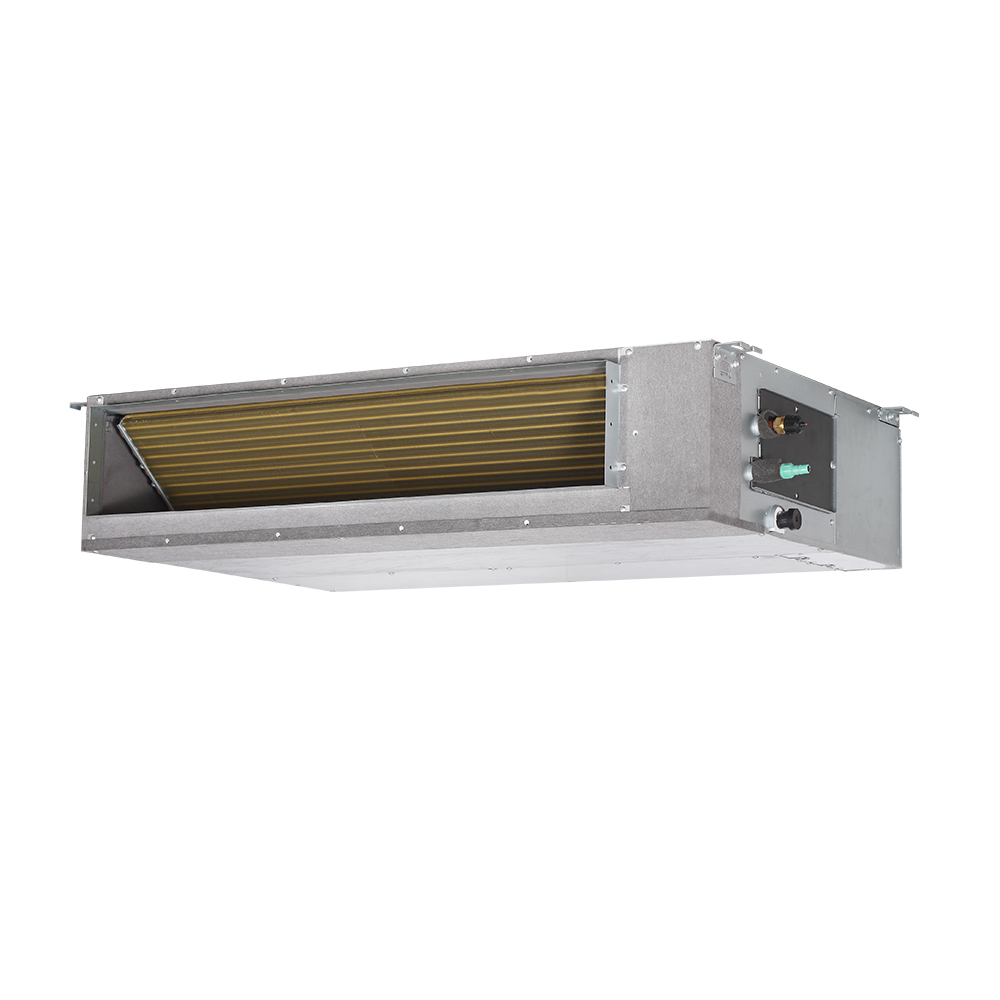

Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler – 230V/60Hz

$728.00

Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler – 230V/60Hz

Available on backorder

SKU: DUCT-09HP-230B-O Category: Brand:

Description

The MRCOOL® OLYMPUS 9K DUCT Air Handler is a reliable solution for heating and cooling spaces up to 400 square feet, making it an excellent fit for bedrooms, home offices, or other compact areas. Its ceiling-integrated design allows for a discreet, flush installation that blends effortlessly into any interior, providing a sleek and contemporary appearance. This space-saving setup is ideal for both residential and light commercial environments where aesthetics and functionality are equally important.
For convenient operation, the unit includes both a wall-mounted wired controller and a handheld remote, allowing you to adjust your settings from across the room or right at your fingertips. Whether you’re relaxing on the couch or managing temperature throughout the day, controlling your climate is simple and user-friendly.
The air handler utilizes R-454B refrigerant, a next-generation, eco-conscious option that combines high performance with environmental responsibility. Its low global warming potential (GWP) significantly reduces the unit’s ecological impact while maintaining energy efficiency and reliable operation. For environmentally mindful homeowners, R-454B is a smart choice that supports sustainability without compromising performance.
Backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, the MRCOOL® OLYMPUS 9K DUCT Air Handler is built to deliver dependable, long-term comfort. It’s a perfect solution for those who appreciate energy efficiency, quiet operation, and sleek design all in one dependable system.

Product Resources

Additional information

Weight39.46 lbs
Dimensions19.92 × 27.56 × 7.87 in
Brand Name

MRCOOL

Series

Olympus Duct

Series Ext

oly_4_mz

Unit Type

Mini-Split

GTIN

00840255587662

UPC

840255587662

Tonnage

0.75

Voltage (V)

208/230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

3

Mount Type

Ducted

Color

Metal

Max Coverage Area

Up to 400

Refrigerant Type

R-454B

Decibel Rating (Dba)

32.5/32.5/31/29.5/23

Decibel Rating Low (Dba)

23

Decibel Rating High (Dba)

32.5

Air Flow Direction

Ducted

Number Of Speeds

5 (Variable)

Oscillation

No

Lineset Fitting Type

Flare

Liquid Line Size

1/4

Suction Line Size

3/8

Blower Motor Speeds

323.7/264.9/206/147.2/117.7

Blower Motor Rpm

850/680/450

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Sleep Mode

Yes

Auto Cool

Yes

Wifi Compatibility

No

App Compatibility

No

Works With iOS

No

Works With Android

No

Remote Control Included

Yes

UL Listed

Yes

CSA Listed

Yes

ETL Listed

Yes

Base Warranty

5-Year Parts

Base Parts Warranty

5-Year

Base Remote Warranty

5 Year

Registered Labor Warranty

None

Base Labor Warranty

None

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU, PR, VI

Row Number

316

Price

728.00

Works With

O-ES-09-HP-C-230C-O1
MULTI3-18HP230C-O
MULTI4-27HP230C-O
MULTI5-36HP230C-O
MULTI6-48HP230C-O

Net Depth (In)

19.92

Net Height (In)

7.87

Net Width (In)

27.56

Net Weight

39.46

Gross Weight (Lbs)

46.74
