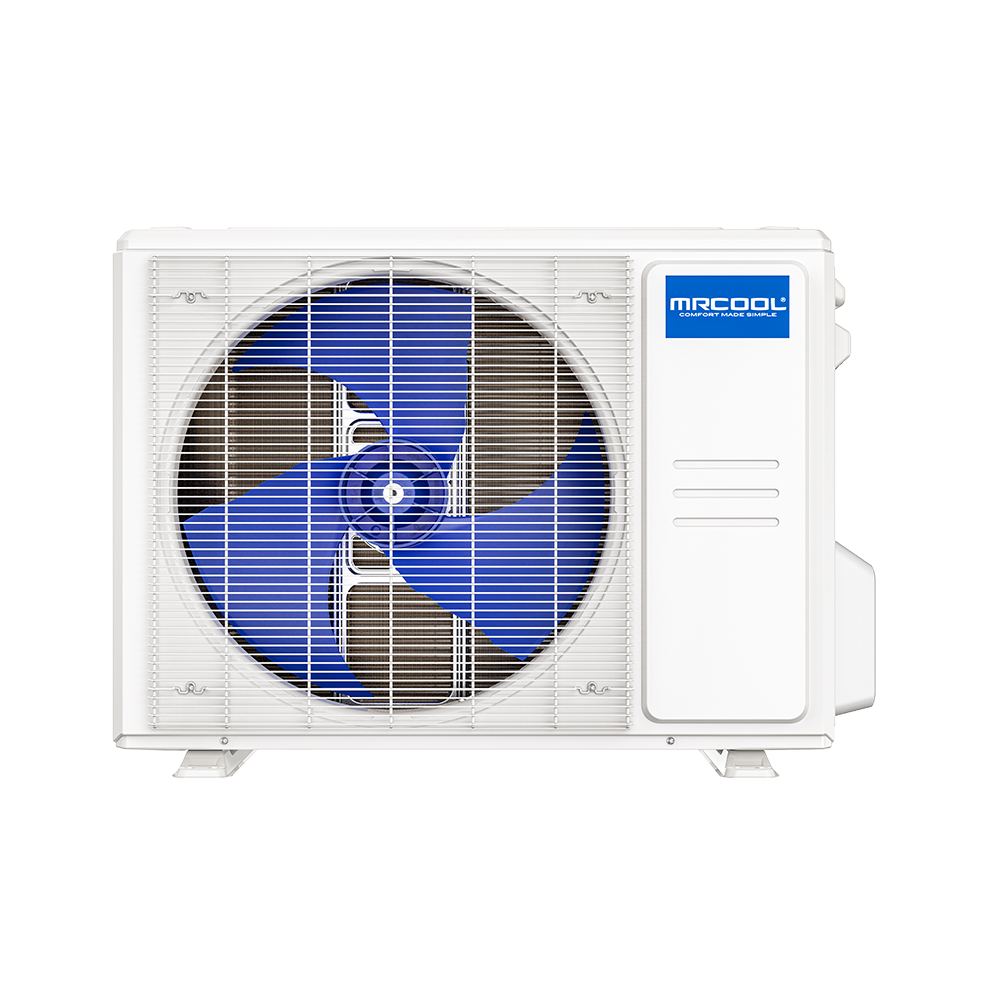

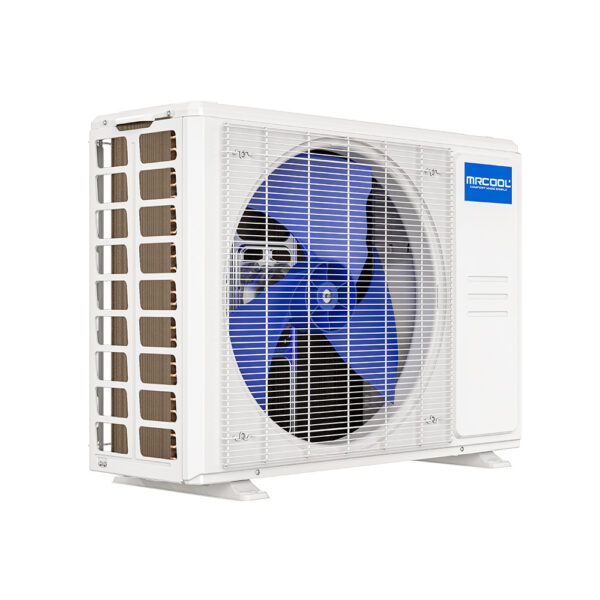

Olympus ENERGY STAR 12,000 BTU 1 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

$1,143.00

Olympus ENERGY STAR 12,000 BTU 1 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

Available on backorder

SKU: O-ES-12-HP-C-230C-O1 Category: Brand:

Description

The MRCOOL® OLYMPUS E-STAR® 12k Series condenser provides dependable heating and cooling for spaces up to 550 square feet, making it perfect for bedrooms, home offices, garages, and other smaller areas. Its compact design ensures a hassle-free installation, even in tight or unconventional spaces.
With Wi-Fi capability and the MRCOOL® Smart HVAC app, you can conveniently adjust the system’s temperature, fan speed, and settings from your smartphone or tablet, giving you full control no matter where you are. Prefer a more hands-on approach? The included remote control offers easy access to all the essential features.
Optimized for energy efficiency, the unit boasts impressive SEER2 and EER2 ratings of 25.5 and 13, respectively, along with a HSPF2-4 rating of 10.6, allowing you to reduce energy costs while enjoying ideal comfort. The outdoor fan operates at a quiet 56 dB, ensuring a peaceful environment without compromising performance.
The unit uses R-454B refrigerant, an eco-friendly solution that provides top-tier performance while being environmentally responsible.
For added convenience, the system is compatible with voice control through Amazon Alexa and Google Assistant, allowing for hands-free operation. The MRCOOL® OLYMPUS E-STAR® 12k Series also comes with a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring long-term reliability, cutting-edge technology, and peace of mind.

Installation by a licensed professional required where applicable
7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional
R-454B environmentally friendly friendly refrigerant
Energy Star Certified

Product Resources

Additional information

Weight72.75 lbs
Dimensions12.99 × 31.69 × 21.81 in
Brand Name

MRCOOL

Series

Olympus 4th Gen Single-Zone Condensers

Series Ext

oly_4

Unit Type

Mini-Split

GTIN

00840255587631

UPC

840255587631

SEER2

Up to 25.4

EER2

Up to 13.4

HSPF2-4

10.5

HSPF2-5

8

Tonnage

1

Cooling Capacity (BTU)

12000

Heating Capacity (BTU)

12000

Voltage (V)

208/230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

15

Color

White

Max Coverage Area

Up to 550

Refrigerant Type

R-454B

Refrigerant Volume (Oz)

35.27

Decibel Rating (Dba)

56

Inverter

DC

Max Lineset Length (Ft)

82

Lineset Fitting Type

Flare

Liquid Line Size

1/4

Suction Line Size

3/8

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

780/680/580

Metering Device

EXV

UL Listed

Yes

CSA Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Warranty

5-Year Parts/7-Year Compressor

Base Parts Warranty

5-Year

Base Compressor Warranty

7-Year

Base Remote Warranty

5 Year

Registered Labor Warranty

None

Base Labor Warranty

None

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU, PR, VI

Row Number

310

Price

1143.00

Works With

O-12-HP-WMAH-230C-O
DUCT-12HP-230B-O
CASSETTE12HP-230C-O

Net Depth (In)

12.99

Net Height (In)

21.81

Net Width (In)

31.69

Net Weight

72.75

Gross Depth (In)

14.57

Gross Height (In)

24.21

Gross Width (In)

36.02

Gross Weight (Lbs)

78.7
