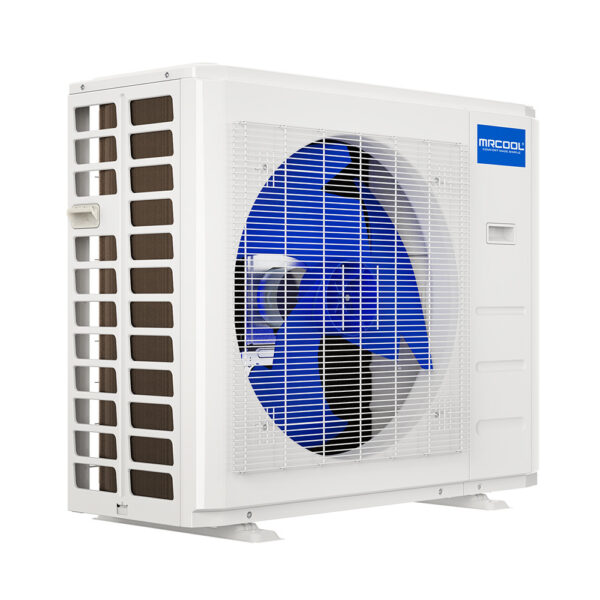

Olympus ENERGY STAR 24,000 BTU 2 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

$1,714.00

Olympus ENERGY STAR 24,000 BTU 2 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

Available on backorder

SKU: O-ES-24-HP-C-230C-O1 Category: Brand:

Description

The MRCOOL® OLYMPUS E-STAR® 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces.
Equipped with Wi-Fi and the MRCOOL® Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings.
This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption.
The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system’s carbon footprint.
In addition, the MRCOOL® OLYMPUS E-STAR® 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.

Installation by a licensed professional required where applicable
7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional
R-454B environmentally friendly friendly refrigerant
Energy Star Certified

Product Resources

Additional information

Weight130.29 lbs
Dimensions16.14 × 37.24 × 31.89 in
Brand Name

MRCOOL

Series

Olympus 4th Gen Single-Zone Condensers

Series Ext

oly_4

Unit Type

Mini-Split

GTIN

00840255587655

UPC

840255587655

SEER2

Up to 21

EER2

Up to 13

HSPF2-4

13.5

HSPF2-5

9.8

Tonnage

2

Cooling Capacity (BTU)

24000

Heating Capacity (BTU)

29000

Voltage (V)

208/230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

25

Min Circuit Ampacity (A)

24.9

Color

White

Max Coverage Area

Up to 1050

Refrigerant Type

R-454B

Refrigerant Volume (Oz)

63.49

Decibel Rating (Dba)

61.5

Inverter

DC

Max Lineset Length (Ft)

164

Lineset Fitting Type

Flare

Liquid Line Size

3/8

Suction Line Size

5/8

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

950/800/500

Metering Device

EXV + Throttle Valve

UL Listed

Yes

CSA Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Warranty

5-Year Parts/7-Year Compressor

Base Parts Warranty

5-Year

Base Compressor Warranty

7-Year

Base Remote Warranty

5 Year

Registered Labor Warranty

None

Base Labor Warranty

None

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU, PR, VI

Row Number

309

Price

1714.00

Works With

O-24-HP-WMAH-230C-O
DUCT-24HP-230B-O
CASSETTE24HP-230C-O

Net Depth (In)

16.14

Net Height (In)

31.89

Net Width (In)

37.24

Net Weight

130.29

Gross Depth (In)

19.69

Gross Height (In)

34.45

Gross Width (In)

42.91

Gross Weight (Lbs)

141.31
