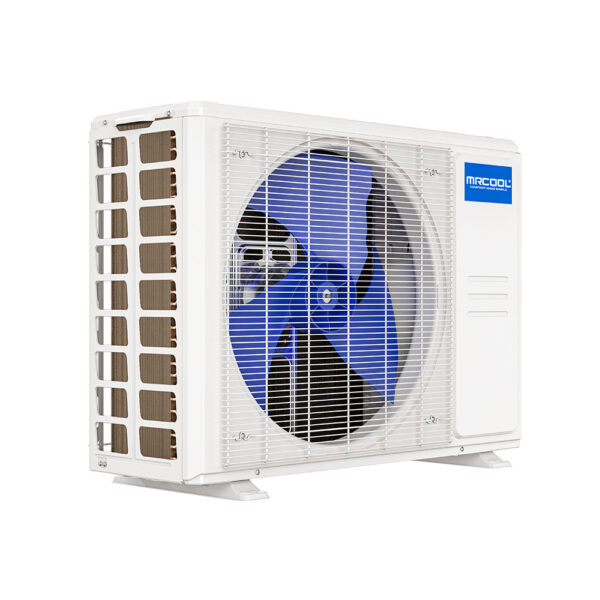

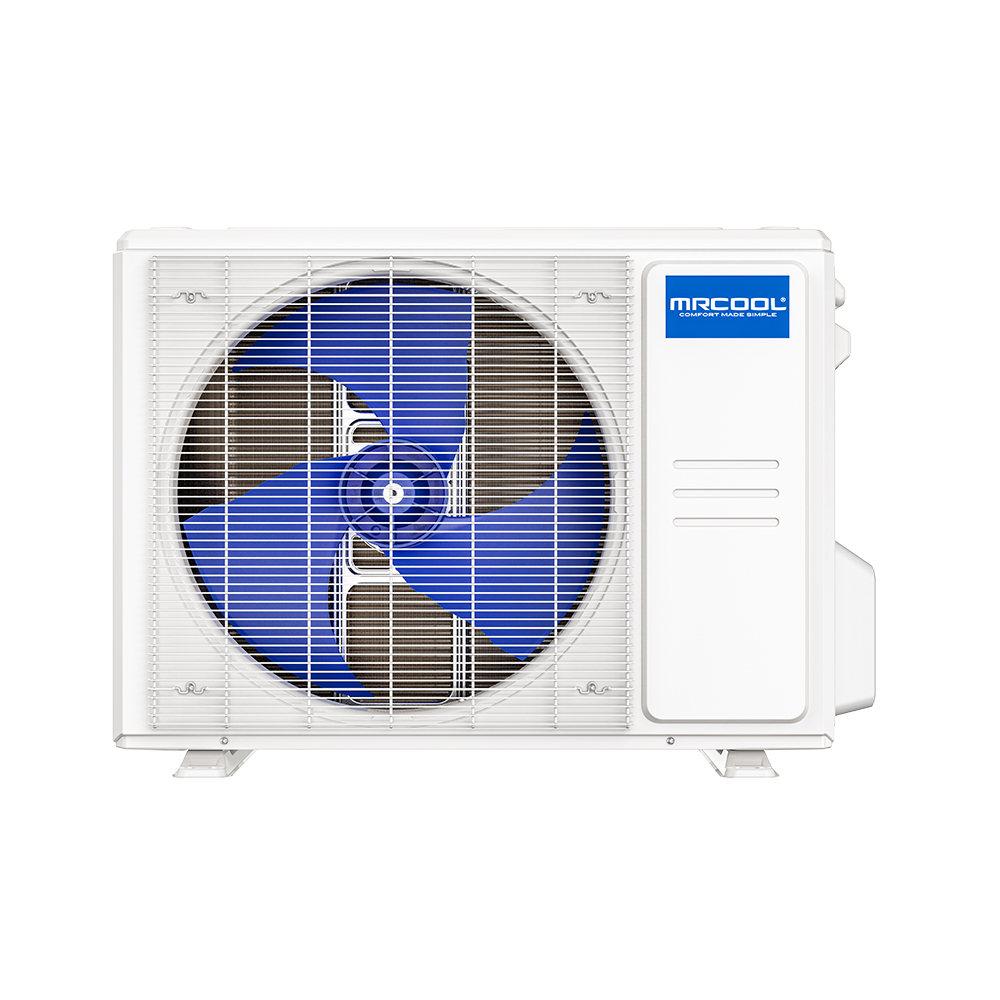

Olympus ENERGY STAR 9,000 BTU 3/4 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

$1,061.00

Olympus ENERGY STAR 9,000 BTU 3/4 Ton Mini-Split Heat Pump Condenser – 230V/60Hz

Available on backorder

SKU: O-ES-09-HP-C-230C-O1 Category: Brand:

Description

The MRCOOL® OLYMPUS ESTAR® 9k Series condenser offers reliable heating and cooling for spaces up to 400 square feet, making it an excellent choice for rooms, home offices, garages, and other compact areas. Its space-saving design makes installation fast and straightforward, even in more confined or challenging spaces.
Featuring Wi-Fi connectivity and the MRCOOL® Smart HVAC app, you can manage the system’s temperature, fan speed, and settings directly from your smartphone or tablet—giving you the flexibility to adjust your climate from virtually anywhere. If you prefer traditional control, the included remote provides easy access to all essential functions.
Designed with energy savings in mind, the unit delivers impressive SEER2 and EER2 ratings of 25.8 and 14.9, respectively, along with a HSPF2-4 rating of 12.5, helping you lower utility costs while maintaining optimal comfort. The outdoor fan runs quietly at just 52.5 dB, so you can enjoy consistent performance without disruptions.
The air handler uses R-454B refrigerant, an eco-friendly choice that helps protect the environment while maintaining excellent efficiency and performance.
For additional convenience, it is compatible with voice control via Amazon Alexa and Google Assistant, so you can adjust settings hands-free. The MRCOOL® OLYMPUS ESTAR® 9k Series is also backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring reliable performance, advanced technology, and long-lasting peace of mind.

Installation by a licensed professional required where applicable
7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional
R-454B environmentally friendly friendly refrigerant
Energy Star Certified

Product Resources

Additional information

Weight72.75 lbs
Dimensions12.99 × 31.69 × 21.81 in
Brand Name

MRCOOL

Series

Olympus 4th Gen Single-Zone Condensers

Series Ext

oly_4

Unit Type

Mini-Split

GTIN

00840255587624

UPC

840255587624

SEER2

Up to 27.4

EER2

Up to 15.4

HSPF2-4

12.5

HSPF2-5

9.5

Tonnage

0.75

Cooling Capacity (BTU)

9000

Heating Capacity (BTU)

12000

Voltage (V)

208/230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

15

Color

White

Max Coverage Area

Up to 400

Refrigerant Type

R-454B

Refrigerant Volume (Oz)

35.27

Decibel Rating (Dba)

56

Inverter

DC

Max Lineset Length (Ft)

82

Lineset Fitting Type

Flare

Liquid Line Size

1/4

Suction Line Size

3/8

Compressor Motor Type

Rotary

Condenser Fan Motor Rpm

850/680/450

Metering Device

EXV

UL Listed

Yes

CSA Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Warranty

5-Year Parts/7-Year Compressor

Base Parts Warranty

5-Year

Base Compressor Warranty

7-Year

Base Remote Warranty

5 Year

Registered Labor Warranty

None

Base Labor Warranty

None

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU, PR, VI

Row Number

3

Price

1061.00

Works With

O-09-HP-WMAH-230C-O
DUCT-09HP-230B-O
CASSETTE09HP-230C-O

Net Depth (In)

12.99

Net Height (In)

21.81

Net Width (In)

31.69

Net Weight

72.75

Gross Depth (In)

14.57

Gross Height (In)

24.24

Gross Width (In)

36.02

Gross Weight (Lbs)

78.7
