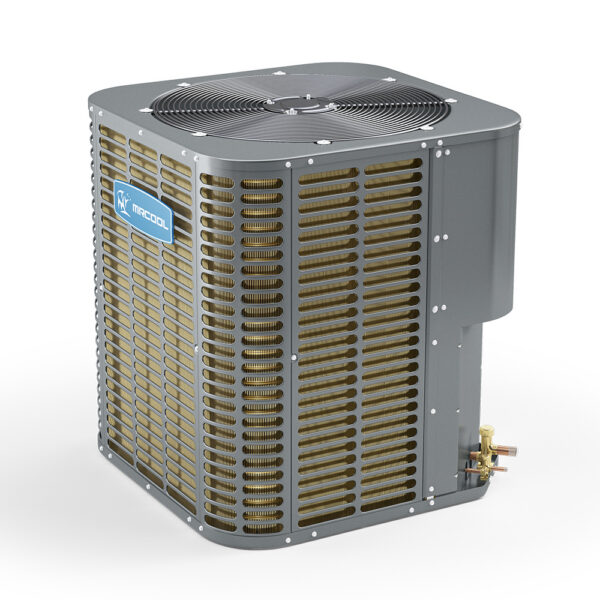

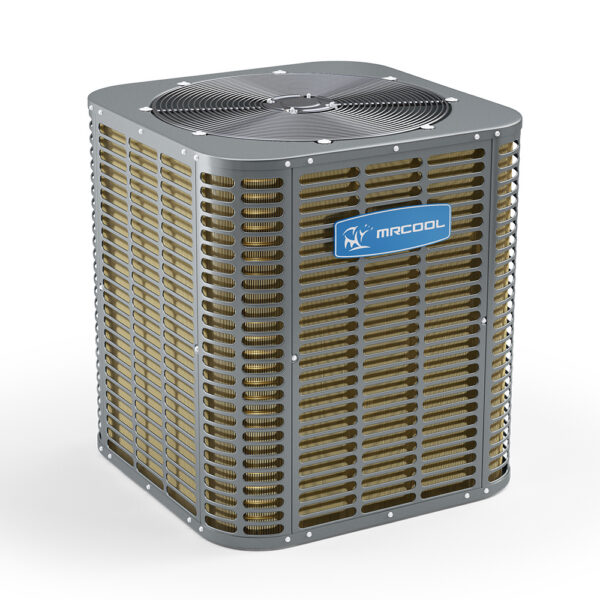

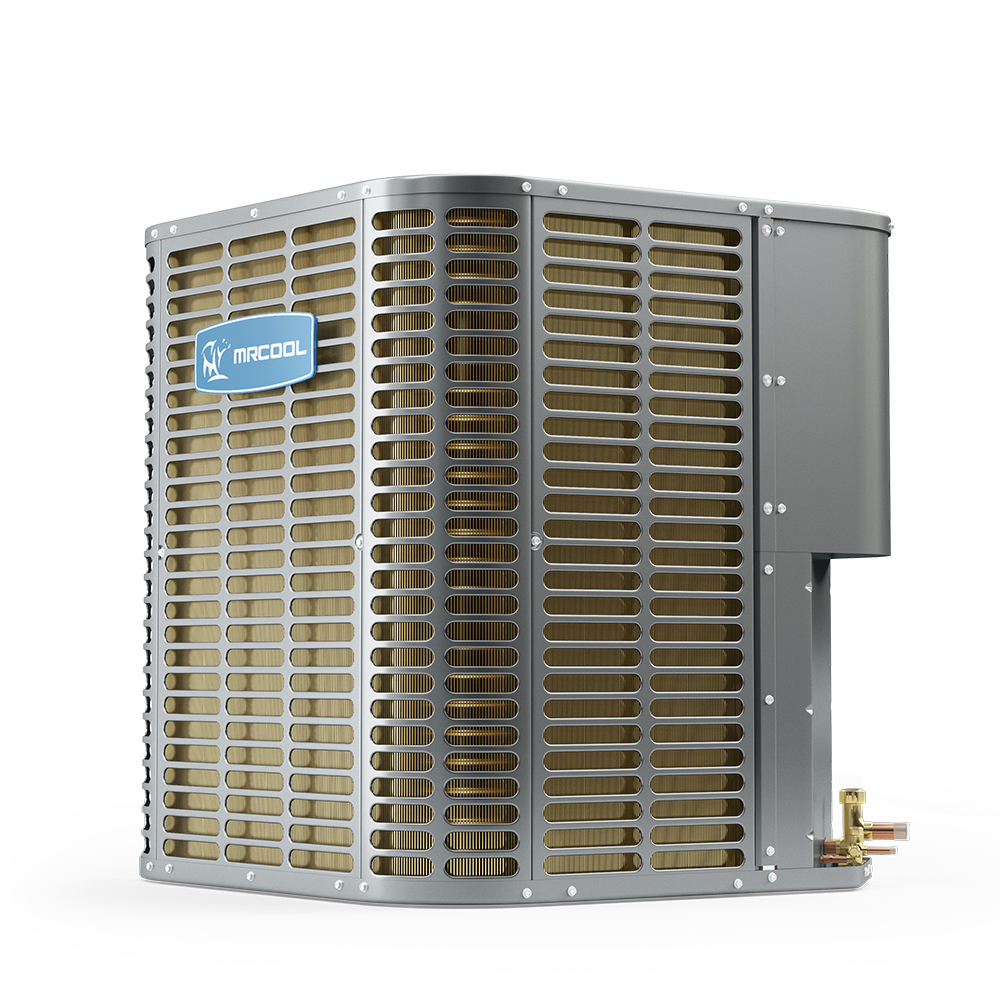

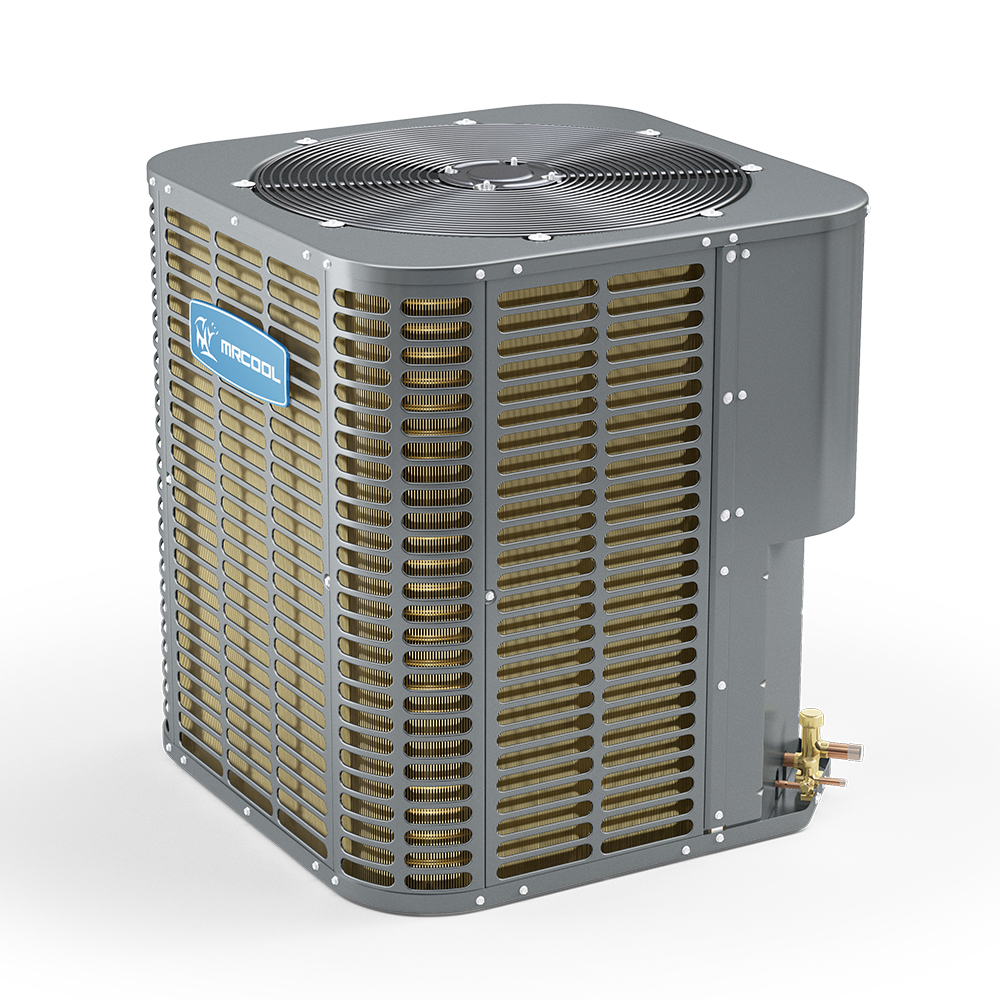

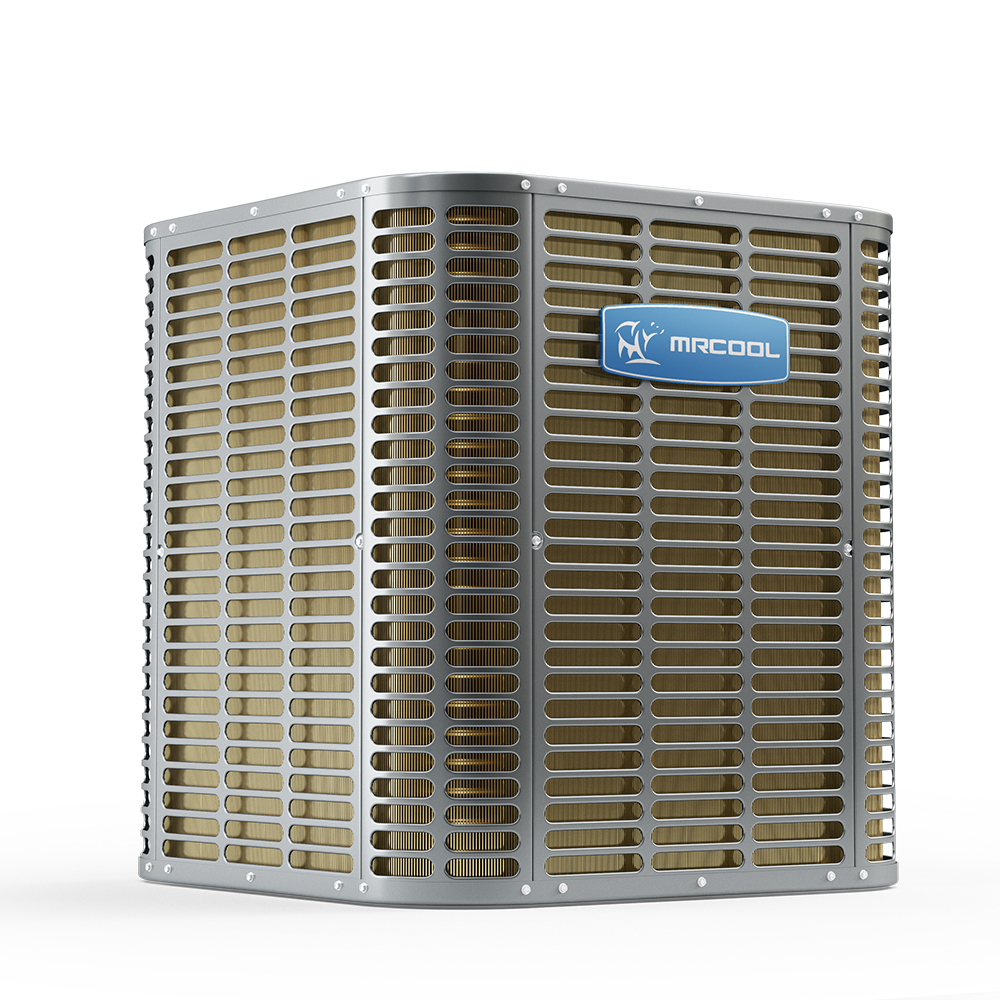

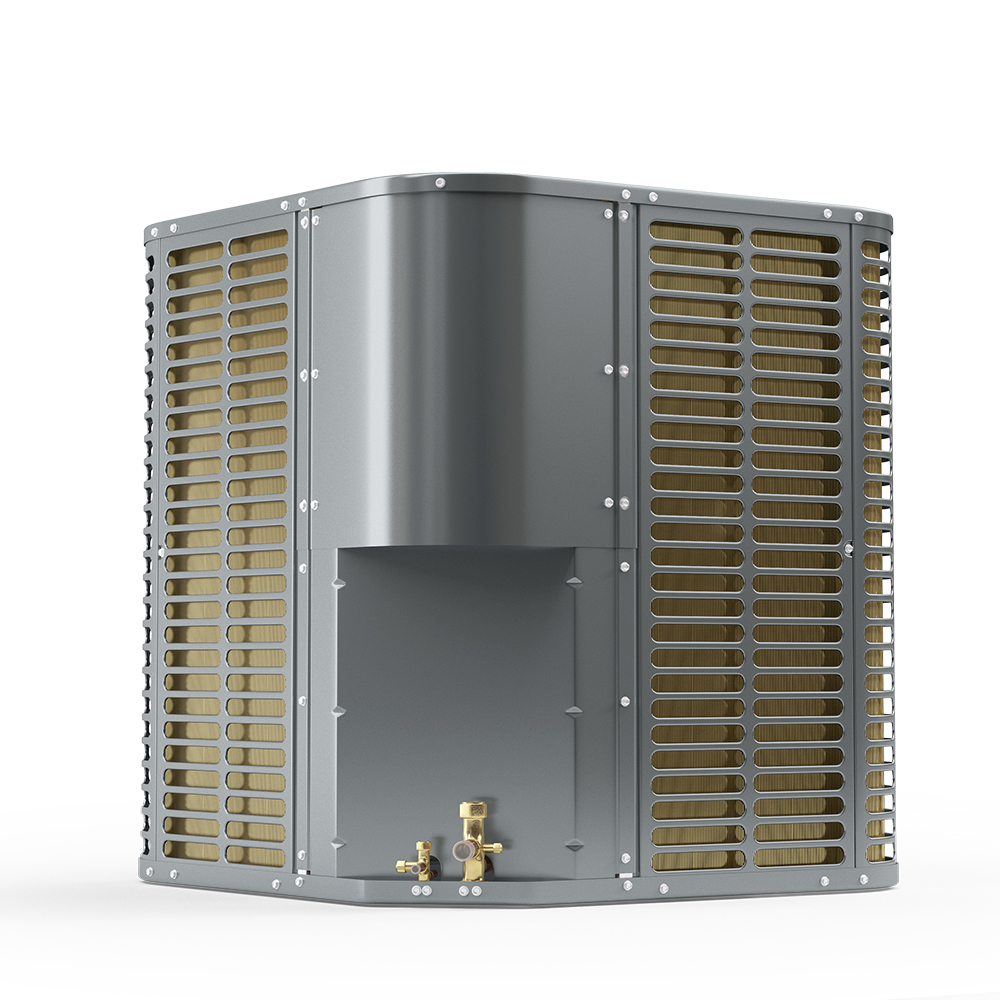

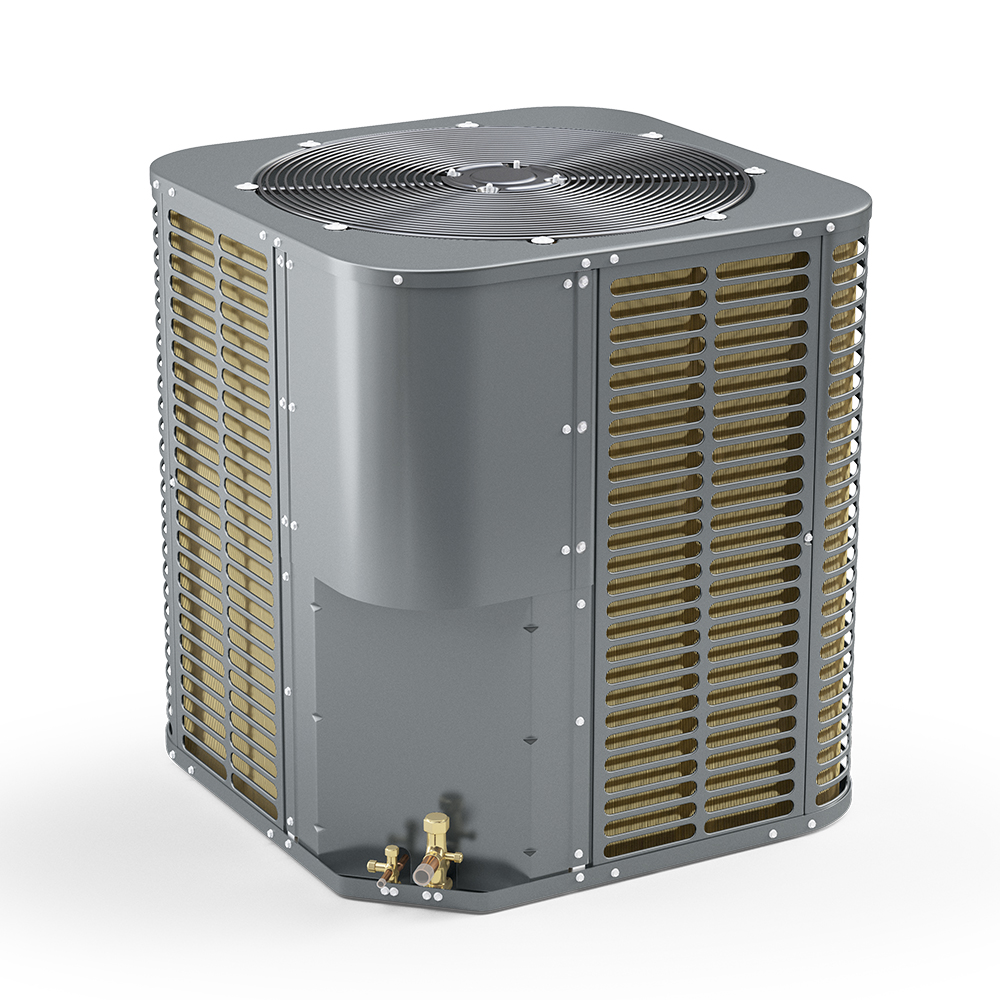

ProDirect 5 Ton up to 14 SEER Split System A/C Condenser

ProDirect 5 Ton up to 14 SEER Split System A/C Condenser

SKU: HAC14060 Category: Brand:

Description

Keeping your home at a comfortable temperature is no trouble at all with the cooling power of this ProDirect 5 Ton 14 SEER Split System A/C Condenser, even in the blazing temperatures of summer. This system’s scroll compressor works hard to help the R-410A refrigerant release the heat it’s absorbed from your home. The speed and volume of the refrigerant is also managed by the piston flow control device, which aids in boosting efficiency. This system takes comfort seriously, which is why it uses a galvanized steel cabinet to protect itself from damage, as well as a Gold Fin® coating to stop water from sticking to the coils, which ensures that this system won’t rust or corrode. The extra layer of insulation that this environmentally-friendly, non-toxic coating offers the system lets you enjoy better efficiency overall. Make sure to register your ETL listed, AHRI rated unit online to get your well-deserved warranty coverage. The MRCOOL ProDirect 5 Ton split system A/C condenser is the right choice for cost-effective comfort for many years to come.

  • Equipment should be installed by a qualified professional
  • 10 Year Registered Warranty
  • 14 SEER
  • R-410A environmentally friendly refrigerant
  • AHRI Certified & ETL listed
  • Pressure and Temperature protection sensors help prevent damage
  • A shape coils, constructed with copper tubing and enhanced aluminum fins.

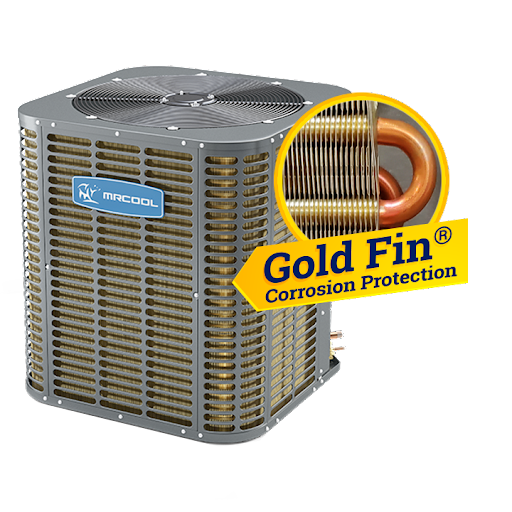

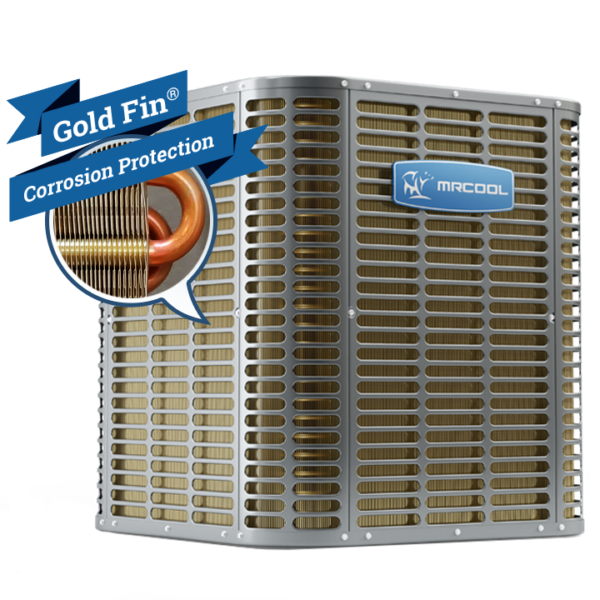

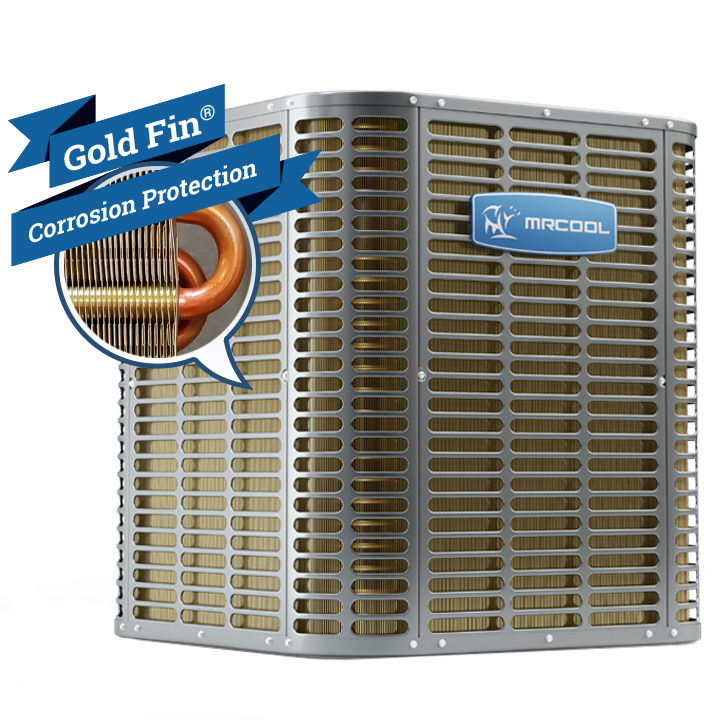

  • Gold Fin® condenser: corrosion resistant – live on the coast? Don't worry, our condenser is built to resist long term corrosion

Product Resources

Additional information

Weight207.00 lbs
Dimensions29.13 × 29.13 × 33.19 in
Brand Name

MrCool

Series

PRODIRECT AC Condenser

Series Ext

hac_14

Unit Type

Split System AC Condensers

GTIN

00810063861810

UPC

810063861810

Country Of Origin

China

SEER

14

EER

11.2

CFM

4000

Cooling Capacity (BTU)

56500

Voltage (V)

230

Phase

1

Cycle (Hz)

60

Max Fuse Breaker (A)

50

Refrigerant Type

R-410A

Refrigerant Volume (Oz)

178.13

Decibel Rating (Dba)

63

Air Flow Direction

4-way

Number Of Speeds

3 Speed

Max Lineset Length (Ft)

66

Liquid Line Size

3/8

Suction Line Size

7/8

Compressor Motor Type

Scroll

Condenser Fan Motor Rpm

1095

Auxiliary Heater Available

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

10 Year Limited Warranty

Proposition 65 Warning

Yes

Restricted States

CA;NV;AZ;NM

Row Number

373

Net Depth (In)

29.13

Net Height (In)

33.19

Net Width (In)

29.13

Net Weight

207.00

Gross Depth (In)

30.10

Gross Height (In)

34.50

Gross Width (In)

30.10

Gross Weight (Lbs)

216
