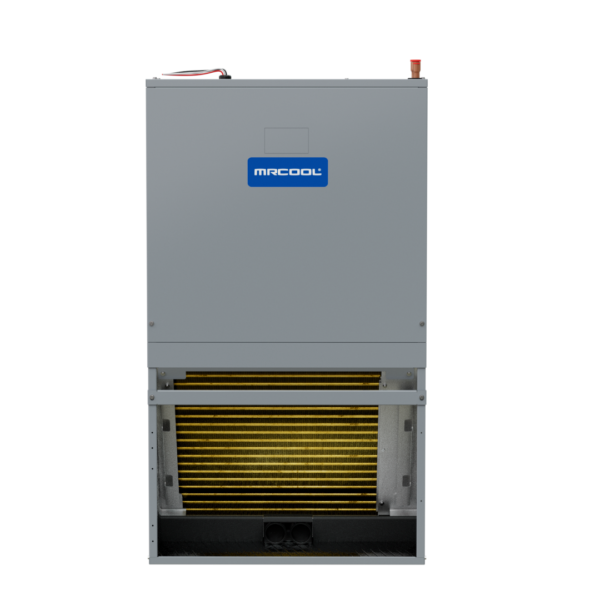

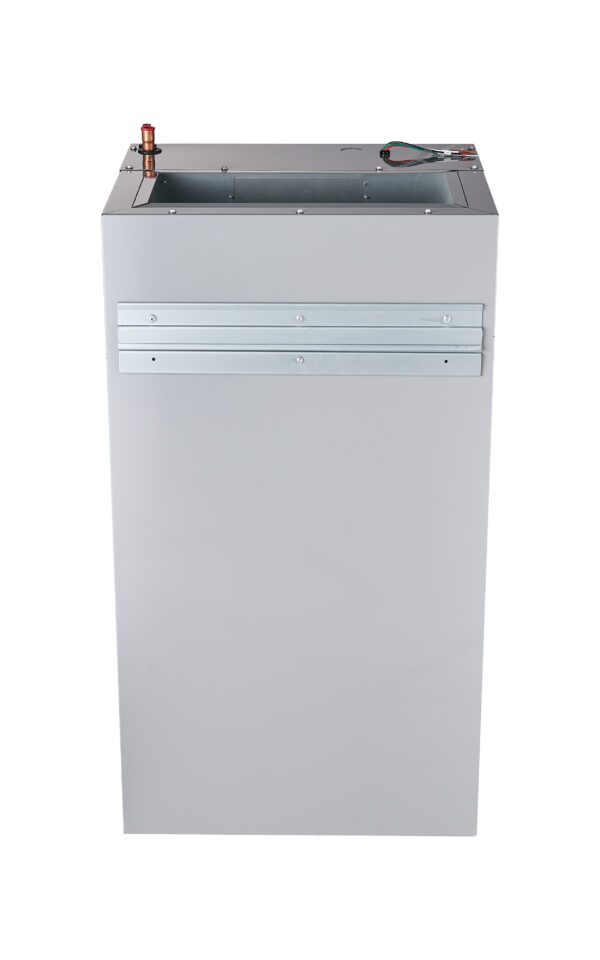

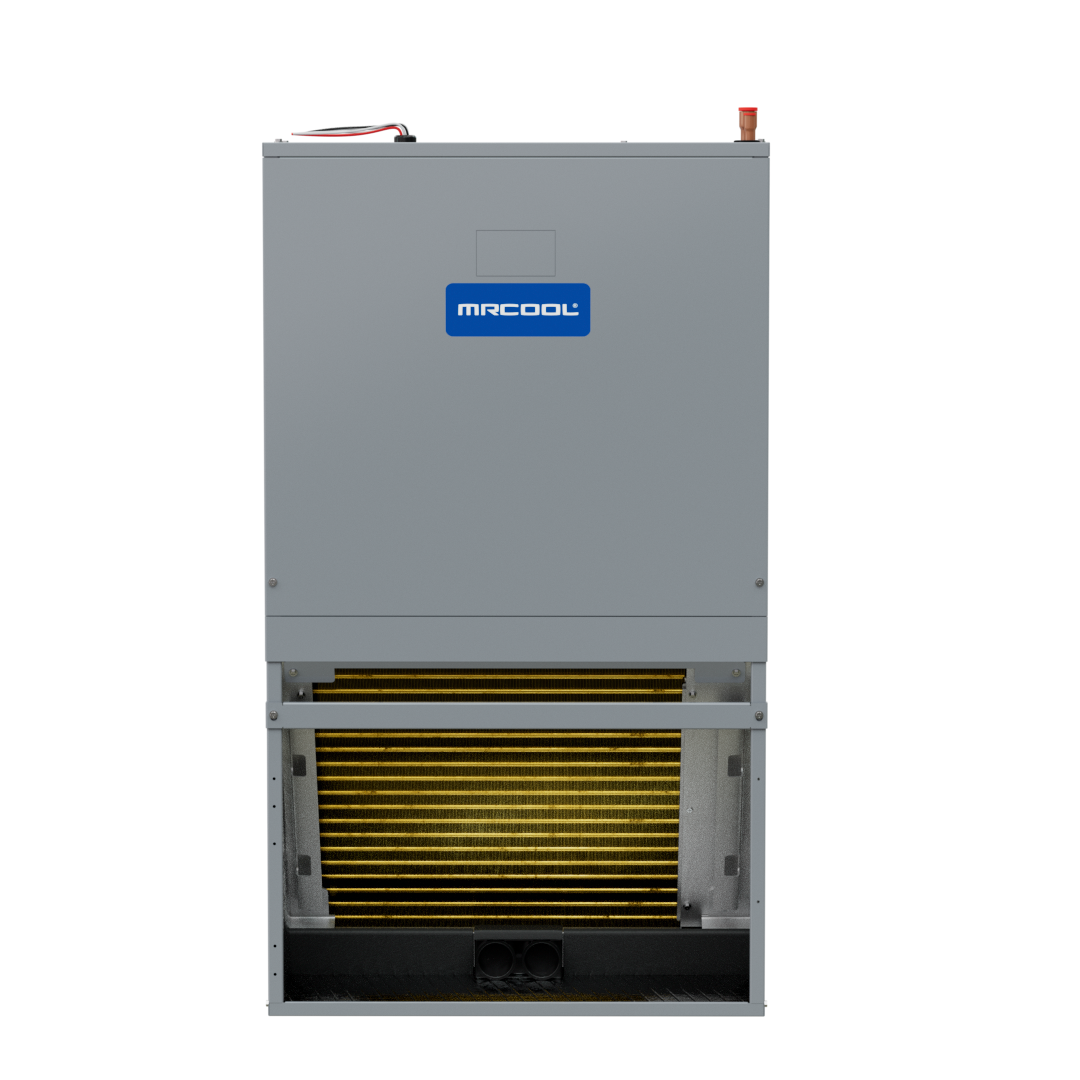

Signature 24,000 BTU Split System Air Handler Stud Mount
$1,090.43
Signature 24,000 BTU Split System Air Handler Stud Mount
Available on backorder
Description
Transform your HVAC system with the MRCOOL® Signature Series 24K Stud Mount Air Handler—crafted for maximum flexibility, energy efficiency, and hassle-free installation. Designed to fit cleanly between standard wall studs, this compact unit is perfect for tight spaces where conventional air handlers just won’t work, making it a smart choice for a wide range of installations.
Despite its slim profile, this powerful unit delivers dependable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options, it adapts easily to your layout and airflow requirements.
Built to last, the MRCOOL® Signature Series 24k Stud Mount Air Handler features a tough galvanized steel cabinet and advanced blower technology for quiet, efficient operation. Full insulation throughout the cabinet minimizes energy loss and prevents condensation, while the high-efficiency ECM motor ensures steady airflow and reduced utility bills.
Maintenance is simple with an integrated air filter rack for quick filter replacements. For colder climates, optional electric heat kits are available to provide added warmth when needed.
Supported by a 10-year limited parts warranty, this unit offers reliability and peace of mind. Whether you’re renovating, upgrading, or building new, the MRCOOL® Signature Series 24K Stud Mount Air Handler delivers compact comfort without compromise.
Product Resources
Additional information
| Weight | 88 lbs |
|---|---|
| Dimensions | 15 × 20.5 × 36 in |
| Brand Name | MRCOOL |
| Series | Signature Series Stud Mount Air Handler |
| Series Ext | ss_td_sm |
| Unit Type | Air Handler |
| Configuration | Stud Mount |
| GTIN | 00840255595926 |
| UPC | 840255595926 |
| CFM | 797 |
| Tonnage | 2 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 3 |
| Min Circuit Ampacity (A) | 2.5 |
| Mount Type | Stud Mount |
| Color | Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 54 |
| Air Flow Direction | Upflow |
| Drain Connection Size | 3/4 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Type | ECM |
| Blower Motor Hp | 1/3 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1010 |
| Filter Type | Replaceable |
| Filter Size | 15 * 19 *1 |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 7.5kW, 10kW |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Row Number | 570 |
| Price | 1090.43 |
| Works With | Signature Series Top Discharge Condensers |
| Net Depth (In) | 15 |
| Net Height (In) | 36 |
| Net Width (In) | 20.5 |
| Net Weight | 88 |
| Gross Depth (In) | 18.11 |
| Gross Height (In) | 39.375 |
| Gross Width (In) | 23.22 |
| Gross Weight (Lbs) | 97 |
