Signature 3 Ton up to 14.3 SEER2 36,000 BTU Split Air Conditioner
$1,768.00
Signature 3 Ton up to 14.3 SEER2 36,000 BTU Split Air Conditioner
Available on backorder
Description

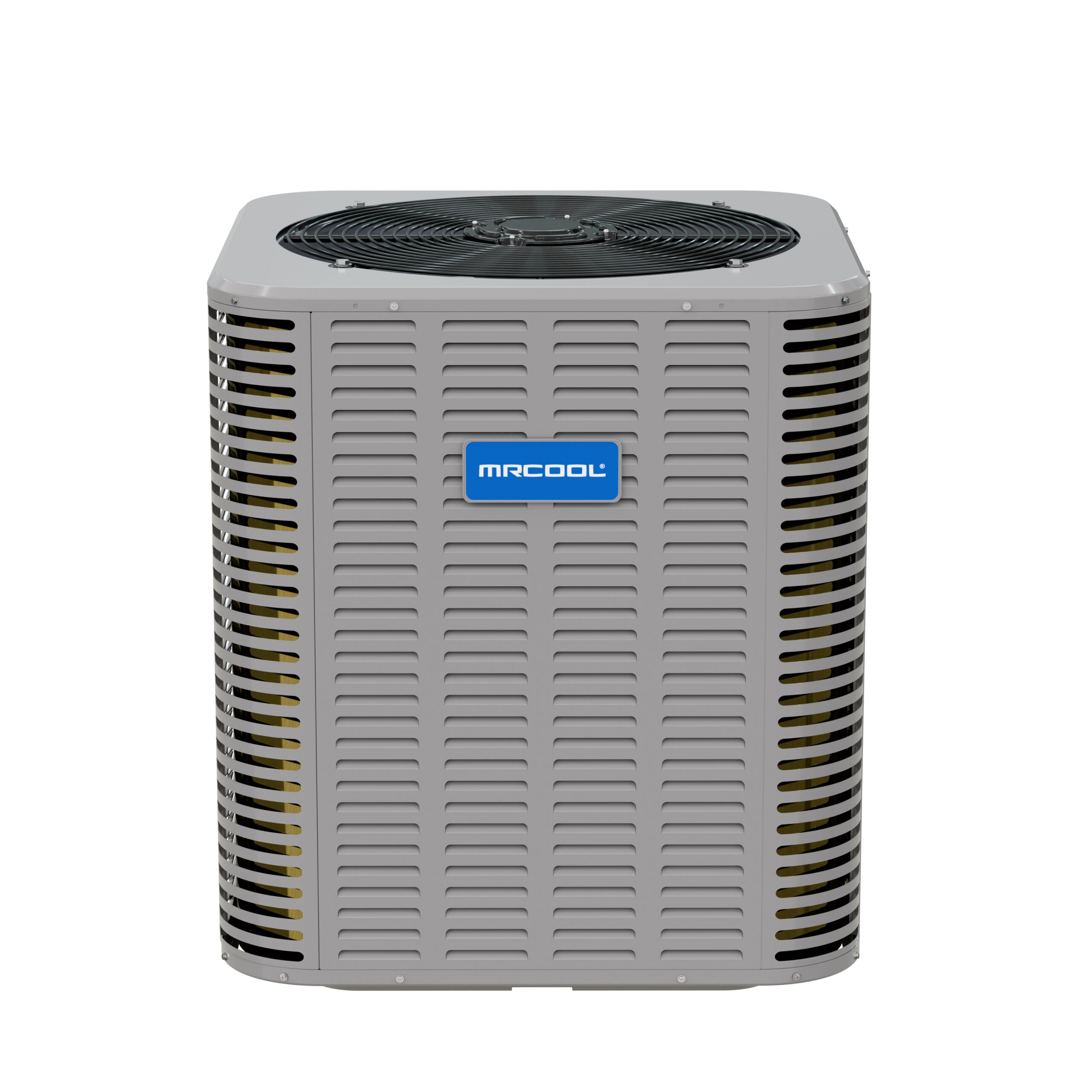

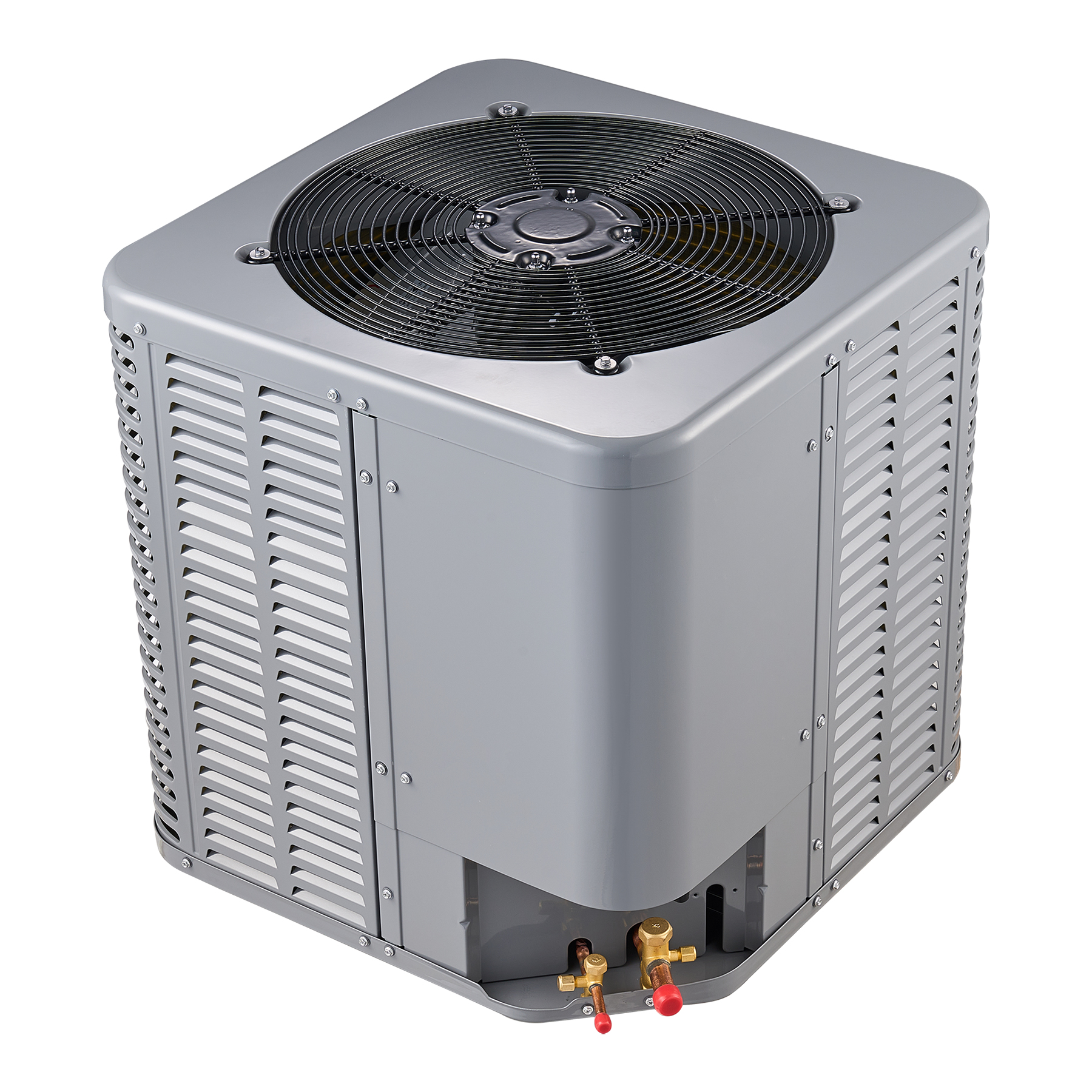

The MRCOOL® Signature Series 36k Cooling Only Condenser delivers efficient, reliable cooling designed to meet the demands of modern homeowners. With a 14.3 SEER2 and 11.7 EER2 rating, it offers strong energy savings without sacrificing comfort, making it an excellent solution for both system upgrades and new installations.
Factory pre-charged with R-454B refrigerant, this unit supports updated environmental regulations while maintaining the high-performance standards MRCOOL® is known for. The pre-charged design allows for quicker, simpler installation, helping save on time and labor.
At the heart of the system is a dependable scroll compressor built for consistent operation and long-term durability. Inner-groove copper tubing improves heat transfer, while integrated sensors monitor pressure and temperature to help protect the system from extreme conditions.
Designed with homeowners in mind, this unit operates at a quiet 63 decibels, comparable to a typical household appliance. A specially engineered sound-control top keeps operation discreet, even during high-demand periods. Meanwhile, a steel louver coil guard and wire fan discharge grille offer added protection to internal components.

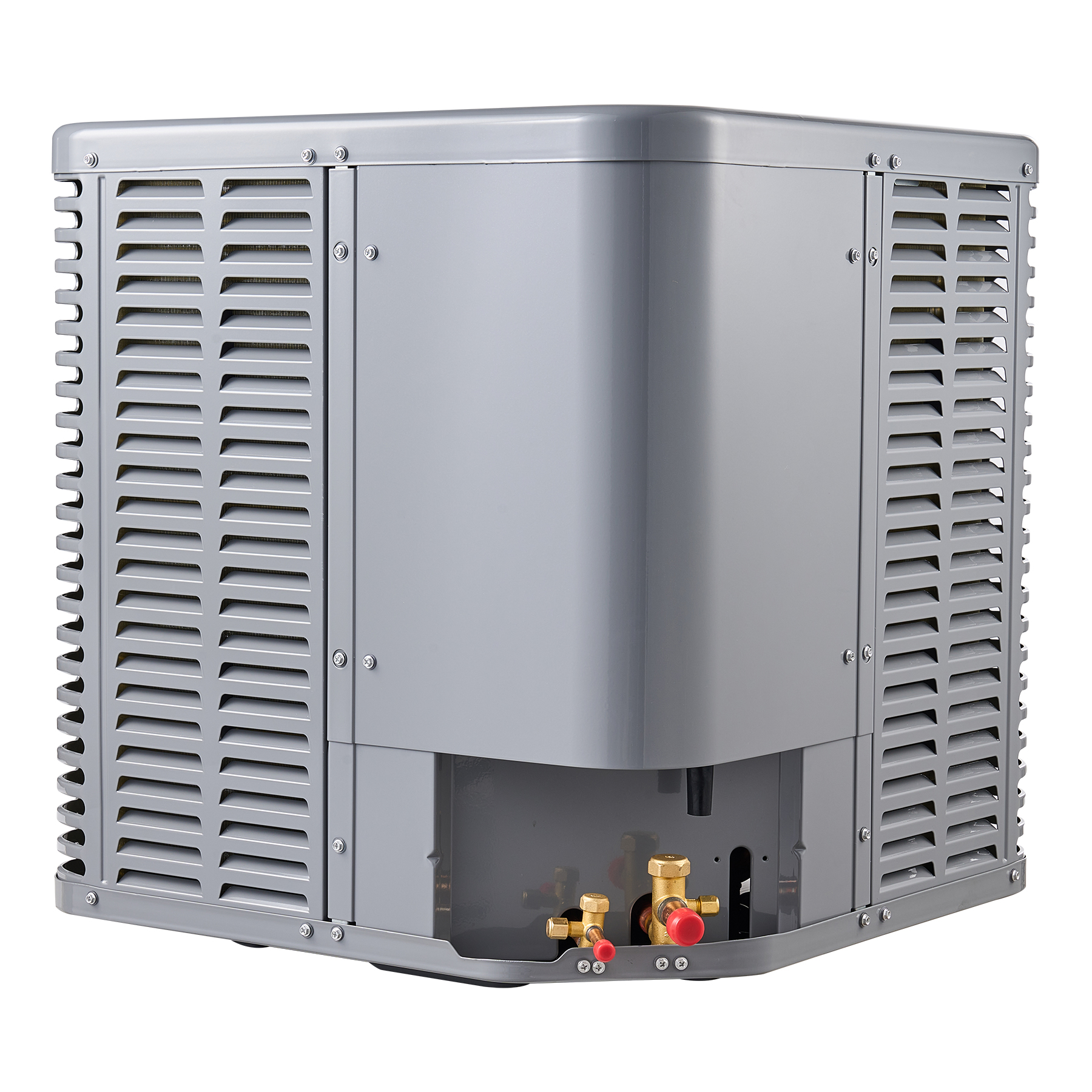

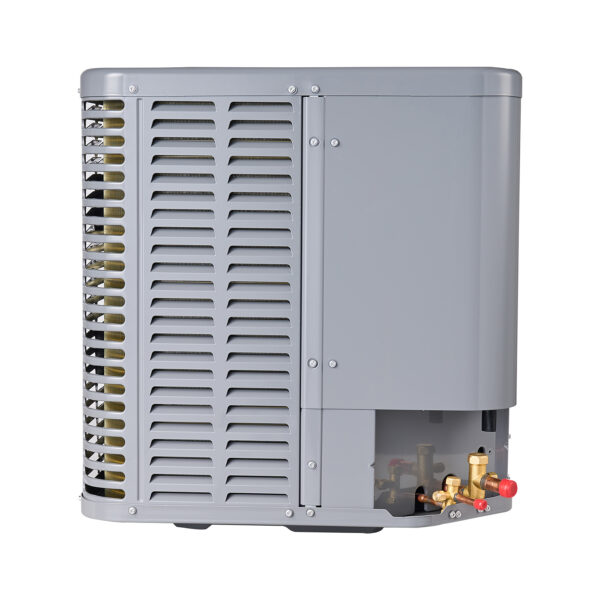

Installation and maintenance are straightforward, with accessible service valves and a convenient gauge port. And MRCOOL®’s industry-leading standard 10-year limited parts warranty and limited lifetime compressor warranty, making the MRCOOL® Signature Series 36k Cooling Only Condenser a dependable, efficient choice for cooling comfort.
Product Resources
Additional information
| Weight | 152 lbs |
|---|---|
| Dimensions | 29.14 × 29.14 × 25 in |
| Brand Name | MRCOOL |
| Series | Signature Series Air Conditioner Condenser |
| Series Ext | ss_td_ac_cnd |
| Unit Type | Split System AC Condenser |
| GTIN | 00840255595742 |
| UPC | 840255595742 |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| CFM | 2750 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 33000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 30 |
| Min Circuit Ampacity (A) | 22.2 |
| Color | Grey |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 98.1 |
| Decibel Rating (Dba) | 63 |
| Inverter | No |
| Min Ambient Cool (F) | 59 |
| Max Lineset Length (Ft) | 150 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/7 |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Row Number | 545 |
| Price | 1768.00 |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| Net Depth (In) | 29.14 |
| Net Height (In) | 25 |
| Net Width (In) | 29.14 |
| Net Weight | 152 |
| Gross Depth (In) | 30.3 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 30.3 |
| Gross Weight (Lbs) | 160 |
