Description

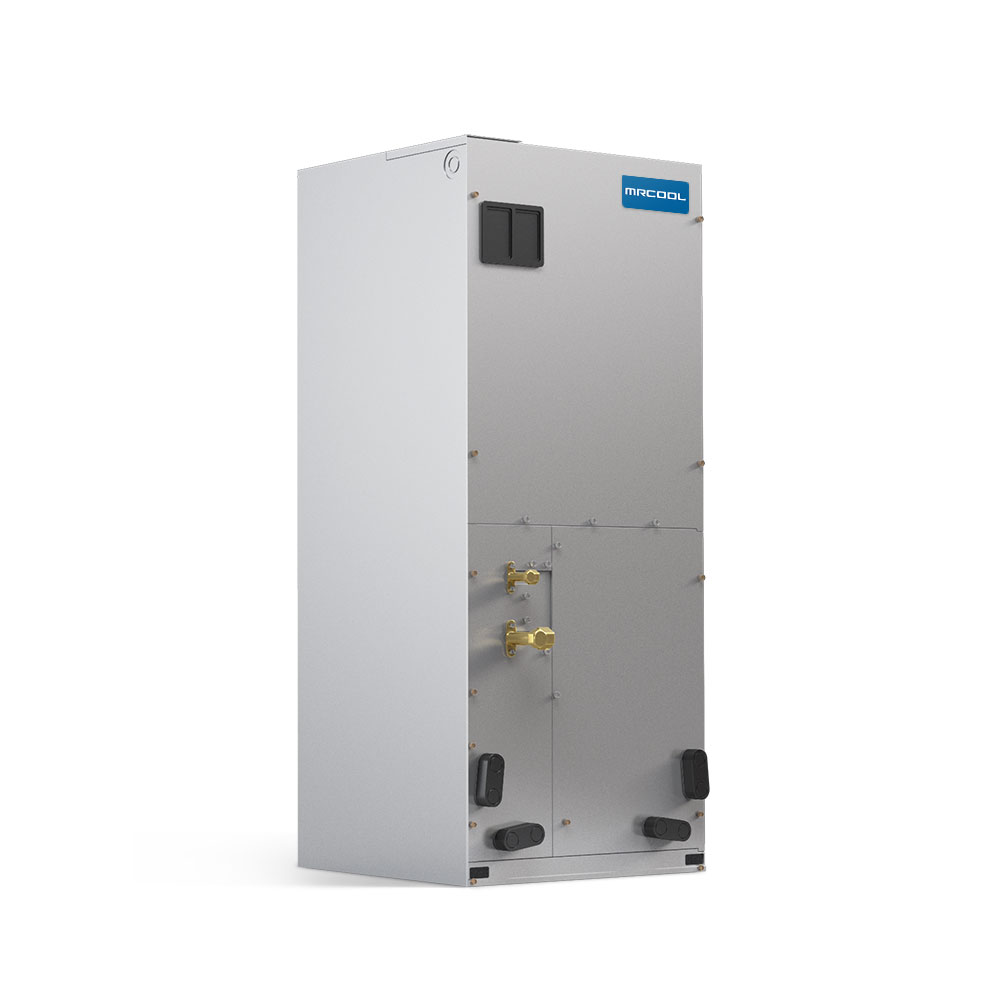

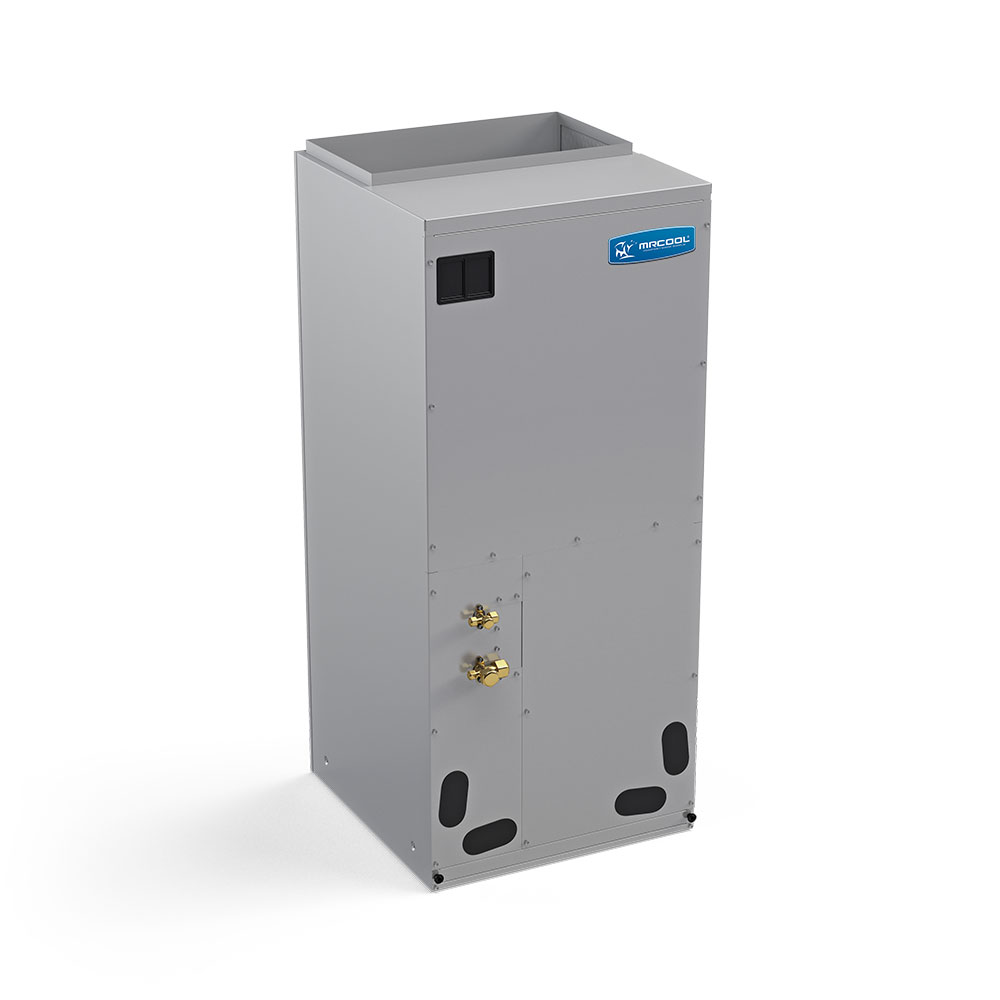

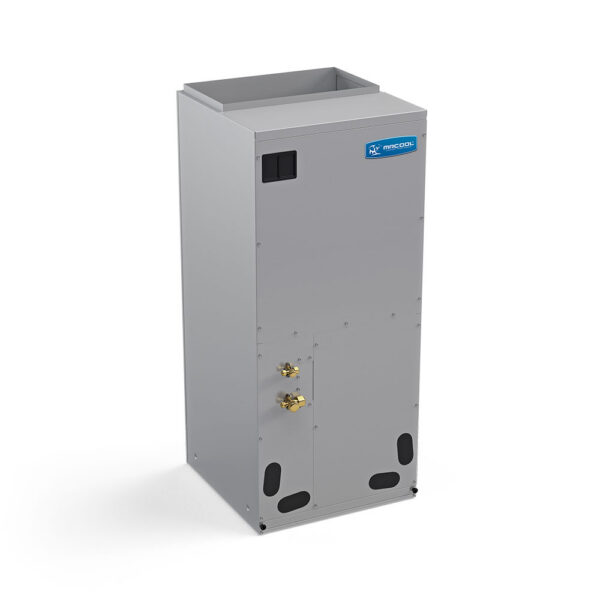

The new Universal High-ESP Air Handler has been designed for use in high static pressure applications such as a manufactured or mobile home, or in a system that has restrictions in the ductwork which would place a strain on a conventional air handler not rated for high external static pressure. This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance. The unit is capable of reaching a maximum static pressure of 250Pa. It offers multiple installation positions (vertical, horizontal left, or horizontal right) for an easy fit into many applications. The Universal High-ESP Air Handler also uses a durable metal filter that is both easy to clean and corrosion resistant to ensure it has a long service life.
- Up to 18 SEER
- High Efficient Energy Saving DC Fan Motor
- Internal Fan Blade Creates Low Noise
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- High Efficient Energy Saving DC Fan Motor
- Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
- Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
- Multi-Position Installation: Upflow or Horizontal
- 10 Year Registered Limited Warranty
- 2 Step Condensation Protection
Product Resources
Additional information
| Weight | 203.00 lbs |
|---|---|
| Dimensions | 24.75 × 21.25 × 57.00 in |
| Brand Name | MRCOOL |
| Series | Universal Series High ESP Air Handler |
| Series Ext | uni_esp_ah |
| Unit Type | Universal Series High ESP Air Handler |
| Configuration | Upflow/Horizontal |
| GTIN | 00810063867560 |
| UPC | 810063867560 |
| Country Of Origin | China |
| SEER | 18 |
| EER | 11.5 |
| HSPF | 10.5 |
| CFM | 1380 |
| Tonnage | 4-5 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 8 |
| Refrigerant Type | R-410A |
| Decibel Rating (Dba) | 50 |
| Number Of Speeds | 8 Speed |
| Inverter | DC |
| Min Ambient Cool (F) | -5 ~ 129.2 |
| Min Ambient Heat (F) | -22 ~ 75.2 |
| Lineset Included | No |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Hp | 1 |
| Filter Type | Washable |
| Filter Size | 20-11/16 X 20-5/16 X 5/8 |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 10KW / 15 KW / 20 KW |
| Overload Protection | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Registered Warranty | 10 Year Limited Warranty |
| Contains Chemicals | Yes |
| Proposition 65 Warning | Yes |
| Row Number | 673 |
| Net Depth (In) | 24.75 |
| Net Height (In) | 57.00 |
| Net Width (In) | 21.25 |
| Net Weight | 203.00 |
| Gross Depth (In) | 26.00 |
| Gross Height (In) | 59.38 |
| Gross Width (In) | 27.25 |
| Gross Weight (Lbs) | 218 |
